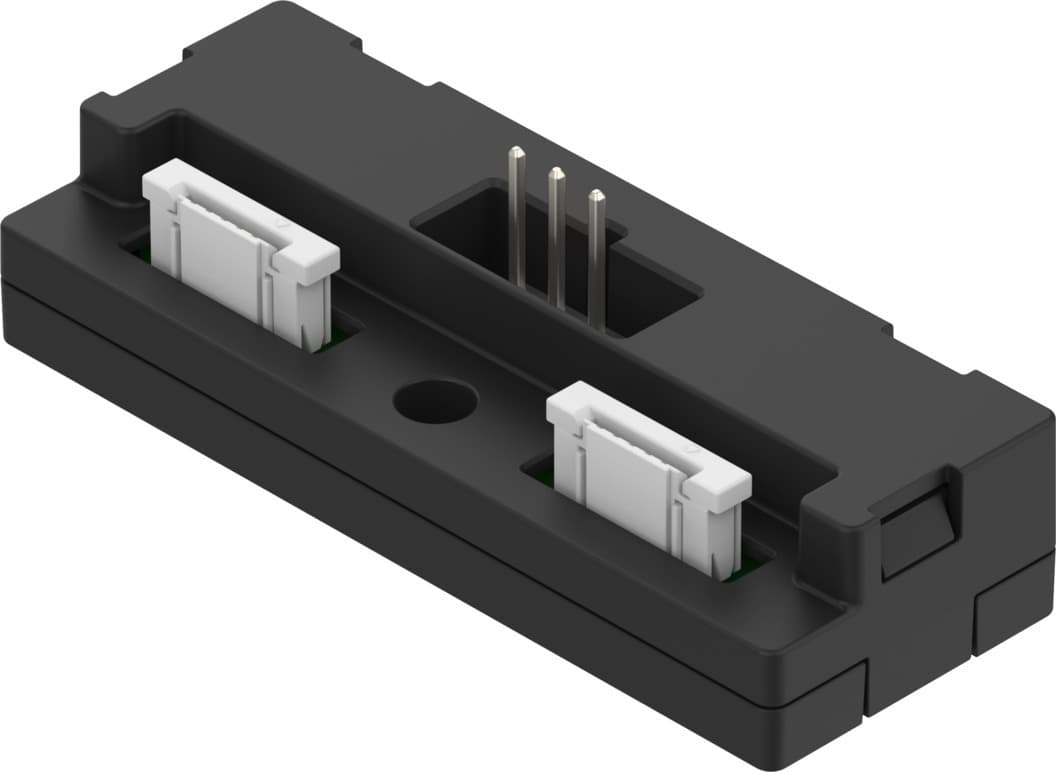

nefv-v13-xx4g3-t1g3
Product ID:16712
Updated: 2026/7/19
Key Features
- 1Ensure reliable operation with robust IP40 protection.
- 2Save panel space using a compact 18.7x50x15.3 mm design.
- 3Simplify installation via through-hole mounting for M3 screws.
- 4Resist corrosion in low-stress environments with CRC 1 rating.
- 5Meet EU RoHS standards for safety and sustainability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimensions W x L x H | 18.7 mm x 50 mm x 15.3 mm | Type of mounting | With through-hole for M3 screw |
| Cable outlet | Straight | Product weight | 6.8g |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | ZIF |
| Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection 1, type of mounting | Inserted | Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Socket |
| Electrical connection 2, connection technology | ZIF | Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Inserted |
| Electrical connection 3, function | Control side | Electrical connection 3, design | Rectangular |
| Electrical connection 3, connection type | Plug | Electrical connection 3, connection technology | Festo-specific coding |
| Electrical connection 3, number of pins/wires | 3 | Electrical connection 3, occupied pins/wires | 3 |
| Electrical connection 3, type of mounting | Inserted | Electrical connection for input 3, connection pattern | 00997358 |
| DC operating voltage range | 0V 310V | Protective earth connection | Not available |
| Shield | no | Degree of protection | IP40 |
| Note on degree of protection | In mounted state | Ambient temperature | -10°C 60°C |
| Storage temperature | -40°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 2 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA |
| Housing colour | Black | Material of pin contacts | Bronze, nickel-plated and gold-plated |
| Manufacturer ID | 8109877 |
Specifications may be subject to change without notice
