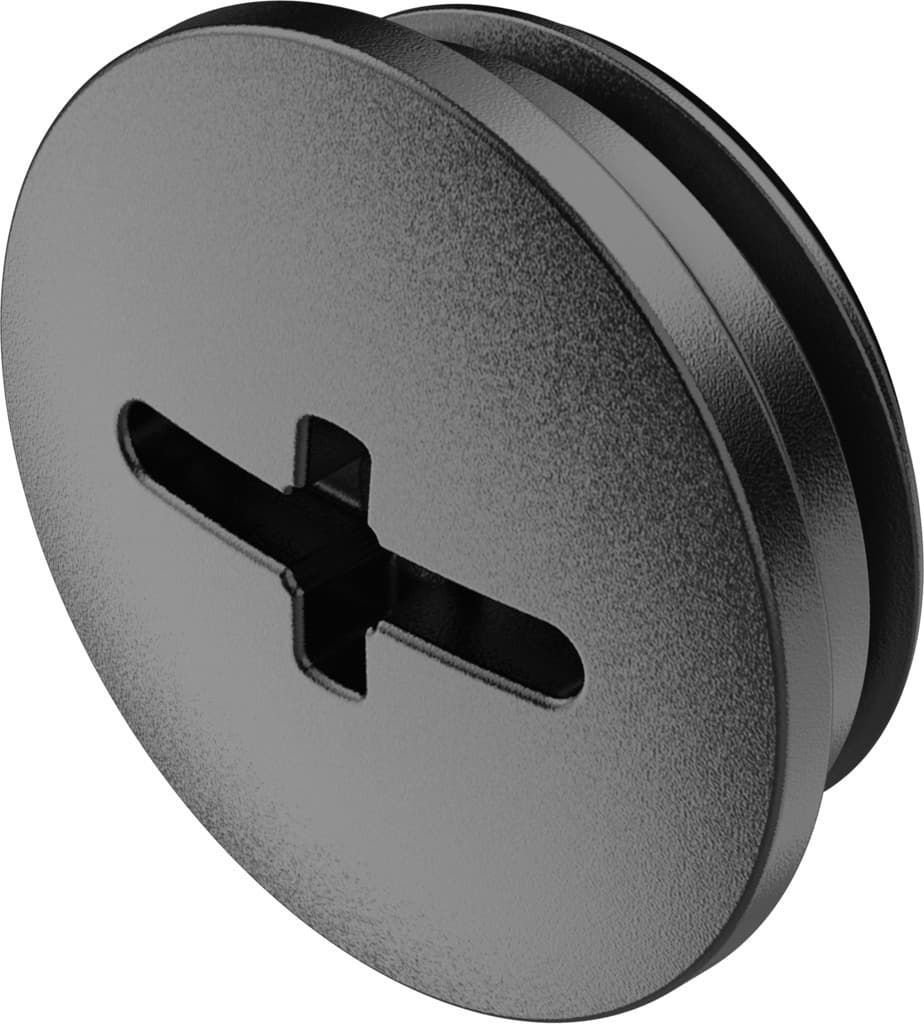

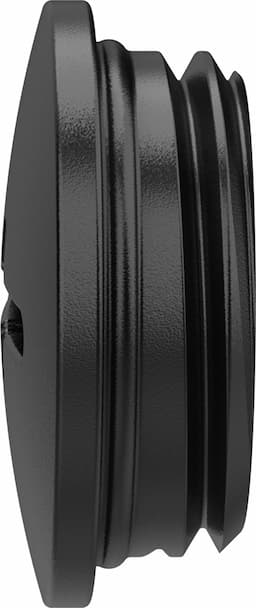

netc-p-m20-pbk-t14
Product ID:457
Updated: 2026/4/3
Key Features
- 1Operate in extreme temperatures from -40°C to 100°C. 2、Achieve IP66 and IP68 protection against dust and water. 3、Install quickly with a secure, tool-minimal tightening mechanism. 4、Ensure durability with high-quality PA and EPDM materials. 5、Accommodate various cable sizes for versatile industrial use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient temperature | -40°C 100°C | Degree of protection | IP66 IP68 |
| Note on degree of protection | IP68 at 5 bar for 30 minutes | CE marking (see declaration of conformity) | As per EU RoHS directive |
| Size | M20x1.5 | Color | Black |
| Material for cable connector | PA | Seals material | EPDM |
| Product weight | 2g | Pack size | 1 |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Manufacturer ID | 8151591 |
Specifications may be subject to change without notice
