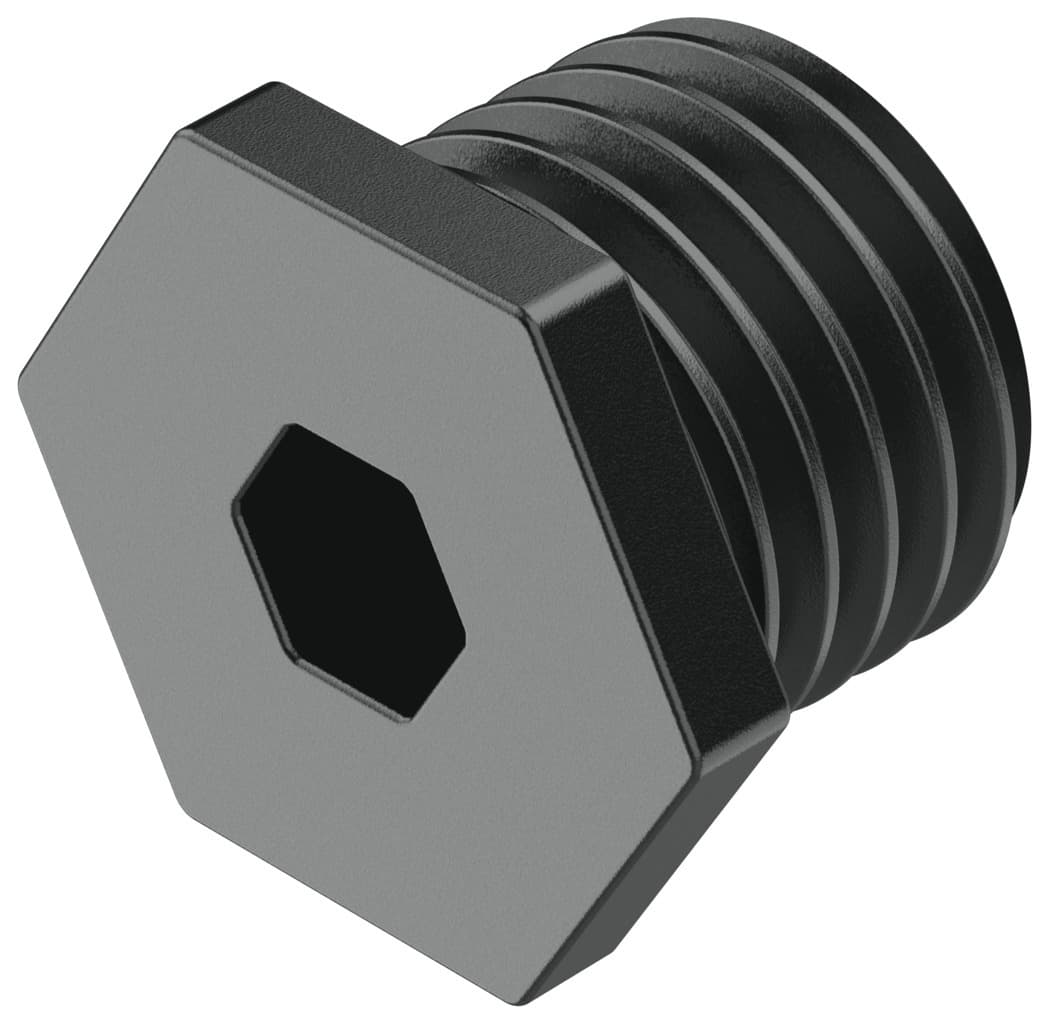

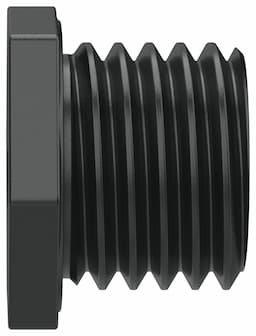

netc-p-m20-pbk-t26-ex4-e
Product ID:459
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic connections in demanding industrial applications. 2、Withstand high temperatures and harsh environments with robust construction. 3、Achieve IP68 protection against dust and water ingress for system integrity. 4、Simplify installation with standardized dimensions and mounting interfaces. 5、Access detailed technical documentation for seamless integration support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient temperature | -40°C 75°C | Degree of protection | IP66 IP68 |
| Note on degree of protection | IP68 at 5 bar for 30 minutes | ATEX category gas | II 2G |
| ATEX category for dust | II 2D | Type of ignition protection for gas | Ex eb IIC Gb |
| Type of (ignition) protection for dust | Ex tb IIIC Db | Explosive ambient temperature | -40°C <= Ta <= +75°C |
| Explosion protection certification outside the EU | EPL Db (IEC-EX) EPL Gb (IEC-EX) | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU RoHS directive |
| Size | M20x1.5 | Color | Black |
| Material for cable connector | PA | Seals material | EPDM |
| Product weight | 5g | Pack size | 1 |
| LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
| Manufacturer ID | 8151589 |
Specifications may be subject to change without notice
