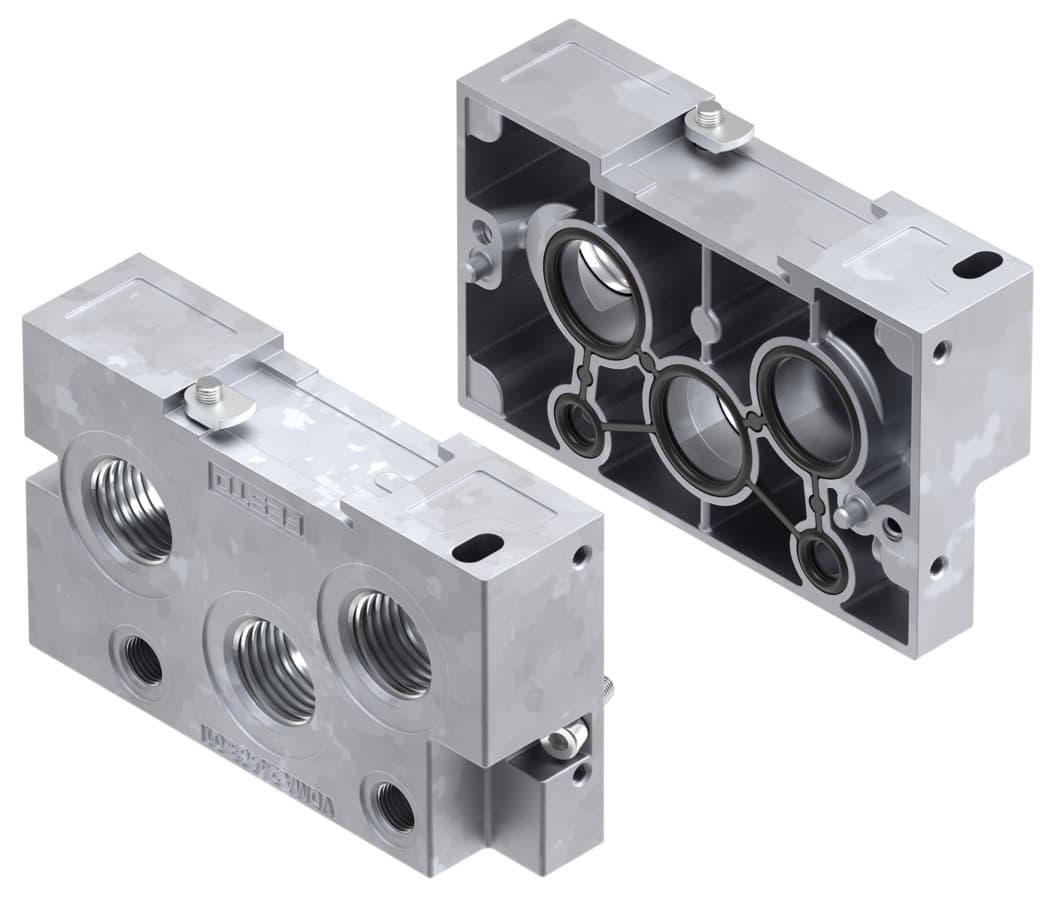

nev-01-vdma
Product ID:4077
Updated: 2026/7/4
Key Features
- 1Construct the kit from durable die-cast aluminum for longevity.
- 2Ensure compressed air compatibility per ISO 8573-1:2010.
- 3Connect precisely with 3x G1/2" and 2x G1/8" ports.
- 4Assemble manifolds for standard sub-bases flexibly.
- 5Enable lubricated operation to enhance system efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 445g |
| Pilot air port 12/14 | G1/8 | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 | Pneumatic connection 5 | G1/2 |
| Housing material | Die-cast aluminum | Manufacturer ID | 161104 |
Specifications may be subject to change without notice
