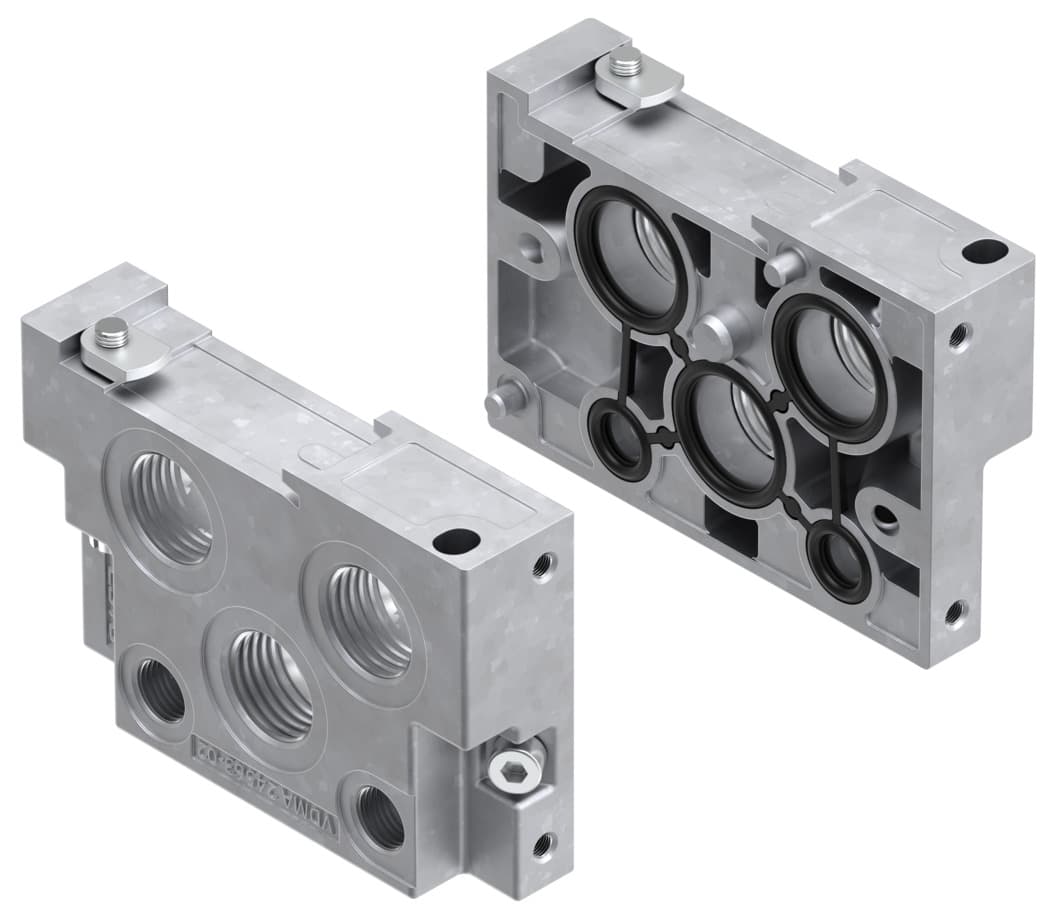

nev-02-vdma
Product ID:4078
Updated: 2026/4/3
Key Features
- 1Assemble manifolds precisely with the NEV-02-VDMA end plate kit. 2、Utilize durable die-cast aluminum housing for extended service life. 3、Connect via 3x G3/8" and 2x G1/8" threaded pneumatic ports. 4、Operate reliably with compressed air meeting ISO 8573-1:2010 standards. 5、Integrate the lightweight 280-gram kit easily into existing systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 280g |
| Pilot air port 12/14 | G1/8 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
| Housing material | Die-cast aluminum | Manufacturer ID | 161112 |
Specifications may be subject to change without notice
