ovel-10-h-15-pq-vm7-ua-c-a-v1v-h3-ra1
Product ID:16850
Updated: 2026/4/3
Key Features
- 1Achieve precise robotic handling with a high-vacuum suction gripper. 2、Integrate easily using the 15mm unit with female M7 thread. 3、Connect exhaust efficiently via the open silencer UO. 4、Monitor vacuum accurately with a 0 to -1 bar sensor range. 5、Receive free shipping and lifetime technical support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Ejector characteristics | High vacuum |

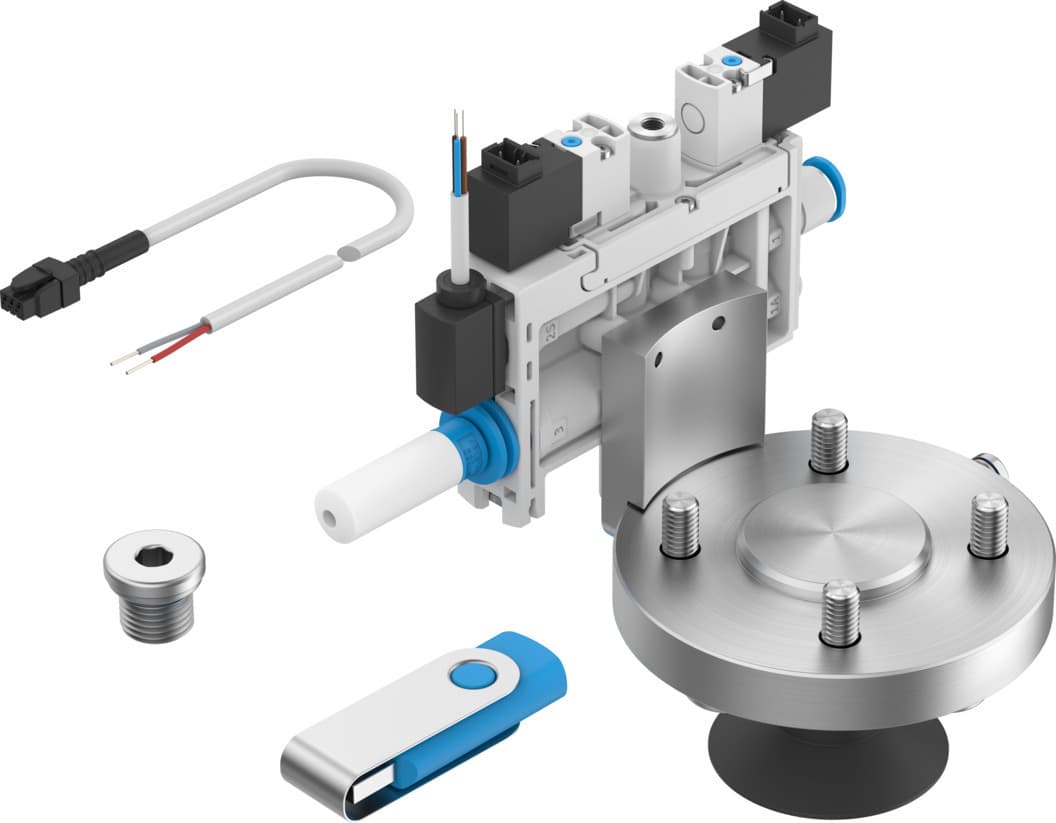

| Integrated function | Electric ejector pulse Flow control Pressure transmitter Shut off valve, electric Compressed air filter Pneumatic muffler open | Scope of delivery | 1x adapter plate 1x distance piece 1x Velcro? roll 1x USB memory stick with URCap 1x vacuum generator 1x suction cup with connection 2x connecting cable 5x blanking plugs 6x socket head screws |
| Switching element function | N/O contact | Switching function | Threshold value comparator Threshold value with fixed hysteresis |
| Valve function | Closed | Method of measurement | Piezoresistive pressure sensor |
| Operating pressure | 2bar 7bar | Max. vacuum | 92% |
| Analog output | 0 - 10 V | DC operating voltage range | 21.6V 26.4V |
| Coil characteristics | 24 V DC: 1.0 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 50°C |
| Product weight | 300g | DC sensor operating voltage range | 18V 30V |
| Pressure measuring range | -1bar 0bar | Electrical connection input, function | Ejector pulse Vacuum generator |
| Electrical connection input, connection type | Cable | Electrical input connection, connection technology | Open end |
| Electrical connection, input, number of pins/wires | 2 | Input electrical connection, cable length | 5m |
| Electrical connection output, function | Sensor | Electrical connection output, connection type | Cable |
| Electrical connection output, connection technology | Open end | Electrical output connection, number of pins/wires | 3 |
| Output electrical connection, cable length | 2.5m | Type of mounting | with through-hole for M6 screw |
| Robot connection | Universal robots UR3/5/10 (PolyScope CB 3.8.0 and later) UR UR3e/5e/10e/16e (from SW5.0.0) | Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm |
| Vacuum connection | G1/4 | Note on vacuum connection | Optional: 4x G1/8 |
| Note on materials | RoHS-compliant | Material of sub-base | Wrought aluminum alloy |
| Seals material | HNBR NBR | Material of screws | Steel |
| Manufacturer ID | 8121043 |
Specifications may be subject to change without notice
