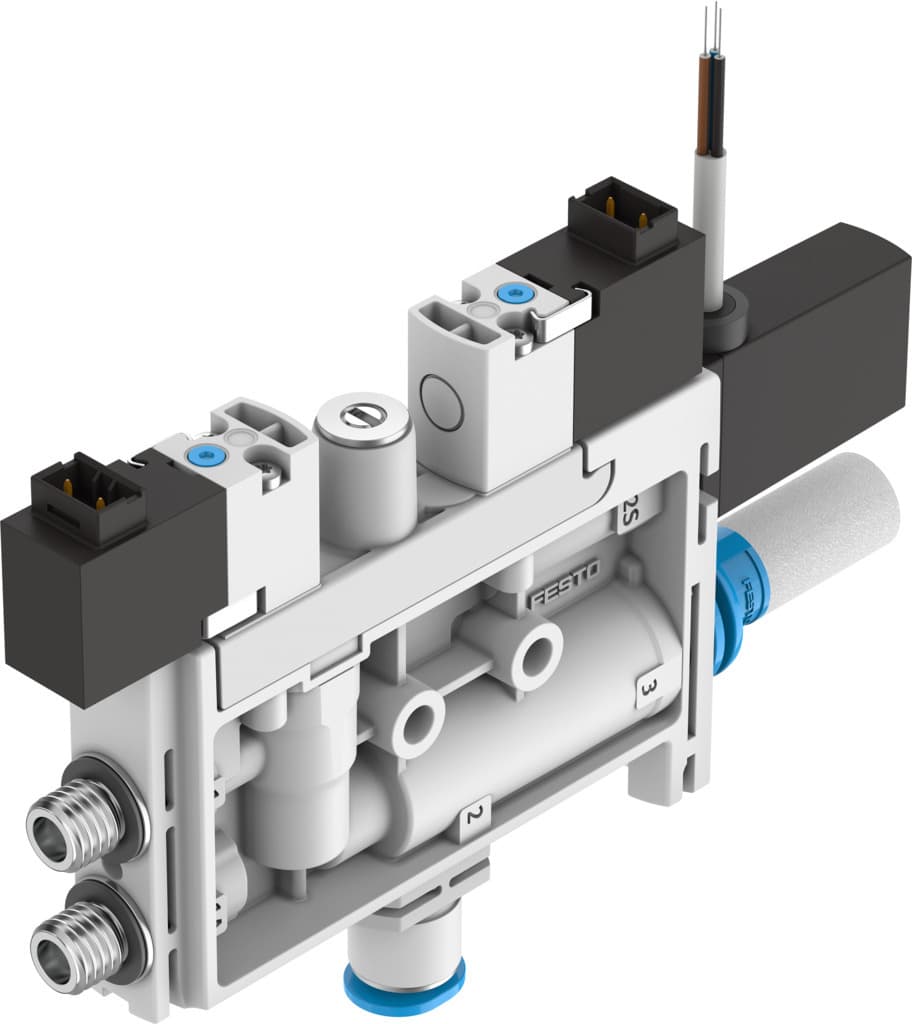

ovel-10-h-15-p-vq6-uc-c-a-v1pnlk-h3
Product ID:665
Updated: 2026/4/3
Key Features
- 1Deliver high vacuum performance with 21 l/min max suction flow. 2、Minimize operational noise using a closed silencer design. 3、Install flexibly with optional mounting positions for various systems. 4、Enhance control with integrated electric ejector pulse and pressure sensor. 5、Ensure precise operation via a 0.95 mm Laval nozzle and 15 mm grid.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.95mm | Width dimension | 15mm |
| Muffler construction type | Closed | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
| Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Pressure sensor Shut off valve, electric Compressed air filter Muffler, closed |
| Structural design | T-shape | Switching element function | N/C contact/N/O contact switchable |
| Switching function | Freely programmable | Symbol | 00995804 |
| Valve function | Closed | Method of measurement | Piezoresistive pressure sensor with display |
| Display type | LED display 2-digit | Setting options | IO-Link? Teach-in Via display and pushbuttons |
| Operating pressure for max. suction rate | 58psi | Operating pressure | 29psi 101.5psi |
| Operating pressure for max. vacuum | 59.45psi | Max. vacuum | 92% |
| Nominal operating pressure | 58psi | Max. suction rate with respect to atmosphere | 21l/min |
| Air supply time at nominal operating pressure with ejector pulse | 1s | DC operating voltage range | 21.6V 26.4V |
| Duty cycle | 100% | Switching output | PNP/NPN switchable |
| Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
| Noise level at nominal operating pressure | 56dB(A) | Degree of protection | IP40 |
| Ambient temperature | 0°C 50°C | Product weight | 93g |
| DC sensor operating voltage range | 18V 30V | Pressure measuring range | -14.5psi 0psi |
| Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
| Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
| Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
| Electrical connection output, function | Sensor | Electrical connection output, connection type | Cable |
| Electrical connection output, connection technology | Open end | Electrical output connection, number of pins/wires | 3 |
| Cable characteristic | Suitable for energy chains | Cable diameter | 2.9mm |
| Cable diameter tolerance | ± 0.1 mm | Cable length | 2.5m |
| Nominal conductor cross section | 0.14mm2 | Type of mounting | On terminal strip |
| Pneumatic connection 1 | Common port | Pneumatic connection 3 | Muffler, closed |
| Vacuum connection | For pneumatic tubing outside diameter 6 mm | Color cable sheath | Gray |
| Material of connecting thread | POM | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Compressed air filter material | POM | Housing material | PA-reinforced |
| Hollow bolt material | Wrought aluminum alloy | Material of cable sheath | PVC |
| Material of adjusting screw | Steel | Muffler material | PA-reinforced PE |
| Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8141089 |
Specifications may be subject to change without notice
