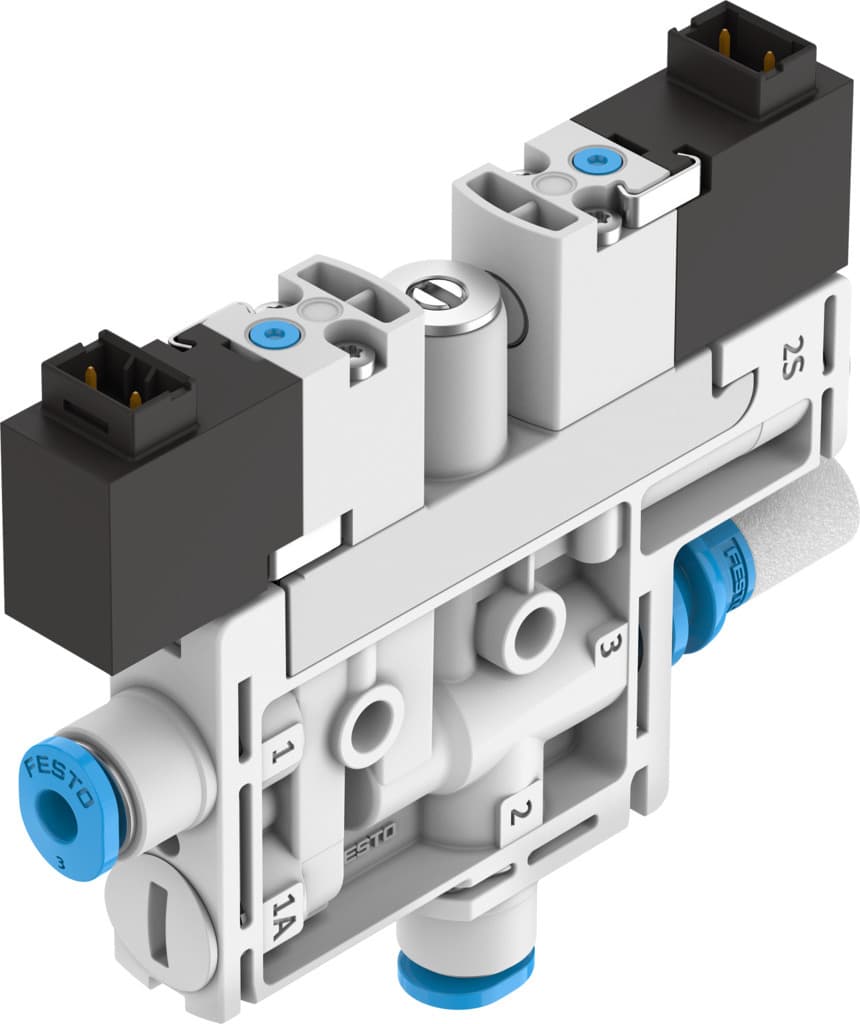

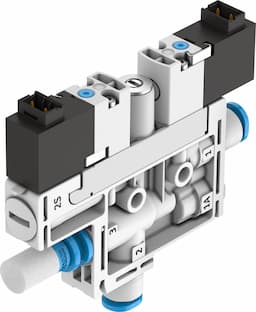

ovel-5-h-10-pq-vq4-uc-c-a-h3
Product ID:659
Updated: 2026/7/4
Key Features
- 1Achieve 89% maximum vacuum at 0.44 MPa for demanding applications.
- 2Integrate easily with a compact 10 mm grid dimension and nominal width.
- 3Ensure reliable operation with an integrated electric ejector pulse system.
- 4Withstand harsh conditions using PA-reinforced housing and steel screws.
- 5Simplify installation via snap-locking connections and through-hole mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.45mm | Width dimension | 10mm |
| Muffler construction type | Closed | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
| Manual override | Non-detenting | Integrated function | Electric ejector pulse Flow control Shut off valve, electric Compressed air filter Muffler, closed |
| Structural design | T-shape | Symbol | 00995808 |
| Valve function | Closed | Operating pressure for max. suction rate | 43.5psi |
| Operating pressure | 29psi 101.5psi | Operating pressure for max. vacuum | 63.8psi |
| Max. vacuum | 89% | Nominal operating pressure | 58psi |
| Max. suction rate with respect to atmosphere | 4l/min | Air supply time at nominal operating pressure with ejector pulse | 2s |
| DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
| Coil characteristics | 24 V DC: 1.0 W | Certification | c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 50°C |
| Noise level at nominal operating pressure | 51dB(A) | Degree of protection | IP40 |
| Ambient temperature | 0°C 50°C | Product weight | 39g |
| Electrical connection input, function | Ejector pulse Vacuum generator | Electrical connection input, connection type | 2x plugs |
| Electrical input connection, connection technology | Connection diagram H | Electrical connection, input, number of pins/wires | 2 |
| Electrical connection for input, connection pattern | 00995626 | Electrical input connection, mounting type | Snap-locking |
| Type of mounting | With through-hole | Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
| Pneumatic connection 3 | Muffler, closed | Vacuum connection | For pneumatic tubing outside diameter 4 mm |
| Material of connecting thread | POM | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Compressed air filter material | POM | Housing material | PA-reinforced |
| Material of adjusting screw | Steel | Muffler material | PA-reinforced PE |
| Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8141099 |
Specifications may be subject to change without notice
