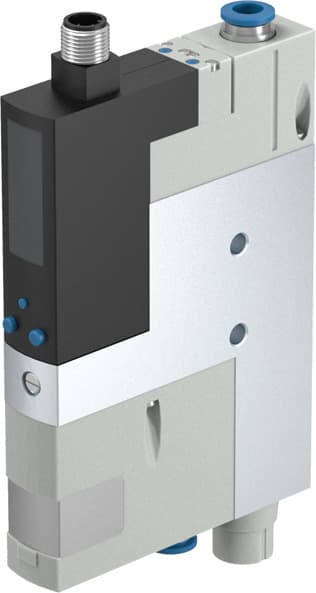

ovem-07-h-b-qo-ce-n-lk
Product ID:15912
Updated: 2026/4/3
Key Features
- 1Generate high vacuum with a 0.7 mm Laval nozzle and 20 mm grid. 2、Assemble and customize easily thanks to modular design. 3、Ensure clean air with an advanced 40 µm filtration grade. 4、Integrate multiple functions like ejector pulse and non-return valves. 5、Rely on robust construction with short circuit strength.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width of Laval nozzle | 0.7mm | Width dimension | 20mm |
| Muffler construction type | Open | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Grade of filtration | 40μm |
| Manual override | Non-detenting Additionally via operating buttons | Integrated function | Ejector pulse valve, electric Flow control Shut off valve, electric Compressed air filter Air saving function, electrical Non-return valve Pneumatic muffler open Vacuum switch |
| Structural design | Modular | Short-circuit protection | yes |
| Measured variable | Relative pressure | Measuring principle | Piezoresistive |
| Switching element function | N/C contact N/O contact | Switching function | Window comparator Threshold value comparator |
| Symbol | 00992094 | Valve function | Closed |
| Reverse polarity protection | for all electrical connections | Switching input to standard | IEC 61131-2 |
| Display type | 4-character alphanumeric Back-lit LCD | Display range | -0.999bar 0bar |
| Displayable unit(s) | bar | Setting range hysteresis | -0.9bar 0bar |
| Setting options | IO-Link? Via display and pushbuttons | Switching position indication | LCD |
| Switching status indication | Optical | Setting range threshold value | -0.999bar 0bar |
| Operating pressure | 2bar 8bar | Operating pressure for max. vacuum | 4.1bar |
| Max. vacuum | 93% | Nominal operating pressure | 6bar |
| Max. suction rate with respect to atmosphere | 16l/min | Air supply time at nominal operating pressure | 0.4s |
| DC operating voltage range | 20.4V 27.6V | Duty cycle | 100% |
| Insulation voltage | 50V | Max. output current | 100mA |
| Residual current | 0.1mA | Switching output | 2xPNP |
| Voltage drop | 1.8V | Coil characteristics | 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W |
| Surge resistance | 0.8kV | Overload protection | Available |
| Contamination level | 3 | Certification | RCM compliance mark c UL us - Listed (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 50°C |
| Relative air humidity | 5 - 85 % | Noise level at nominal operating pressure | 58dB(A) |
| Degree of protection | IP65 | Protection class | III |
| Ambient temperature | 0°C 50°C | Max. tightening torque | 0.8 Nm with internal thread 2.5 Nm with through-hole |
| Product weight | 330g | Pressure measuring range | -1bar 0bar |
| Accuracy in ± % FS | 3%FS | Reproducibility, switching value FS | 0.6% |
| Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
| IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
| IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, port class | A |
| IO-Link?, process data width OUT | 1 Byte | IO-Link?, process data content OUT | 1 bit (ejector pulse ON/OFF) 1 bit (vacuum ON/OFF) |
| IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
| IO-Link?, minimum cycle time | 3.5 ms | IO-Link?, data memory required | 500byte |
| IO-Link?, device ID | 0x00003E | Electrical connection | 5-pin M12x1 Plug |
| Protection against tampering | Electronic interlock | Type of mounting | With through-hole With internal thread With accessories |
| Pneumatic connection 1 | QS-8 | Pneumatic connection 3 | QS-8 |
| Vacuum connection | QS-8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Female nozzle material | POM |
| Compressed air filter material | Fabric PA Sintered steel | Housing material | Die-cast aluminum PA-reinforced |
| Material of adjusting screw | Steel | Muffler material | Wrought aluminum alloy PU foam |
| Material of screws | Steel | Inspection window material | PA |
| Material of plug housing | Brass, nickel-plated | Material of pin contacts | Brass, gold-plated |
| Material of pins | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Material of keypad | TPE-U | Material of pneumatic fitting | Brass, nickel-plated |
| Manufacturer ID | 8037694 |
