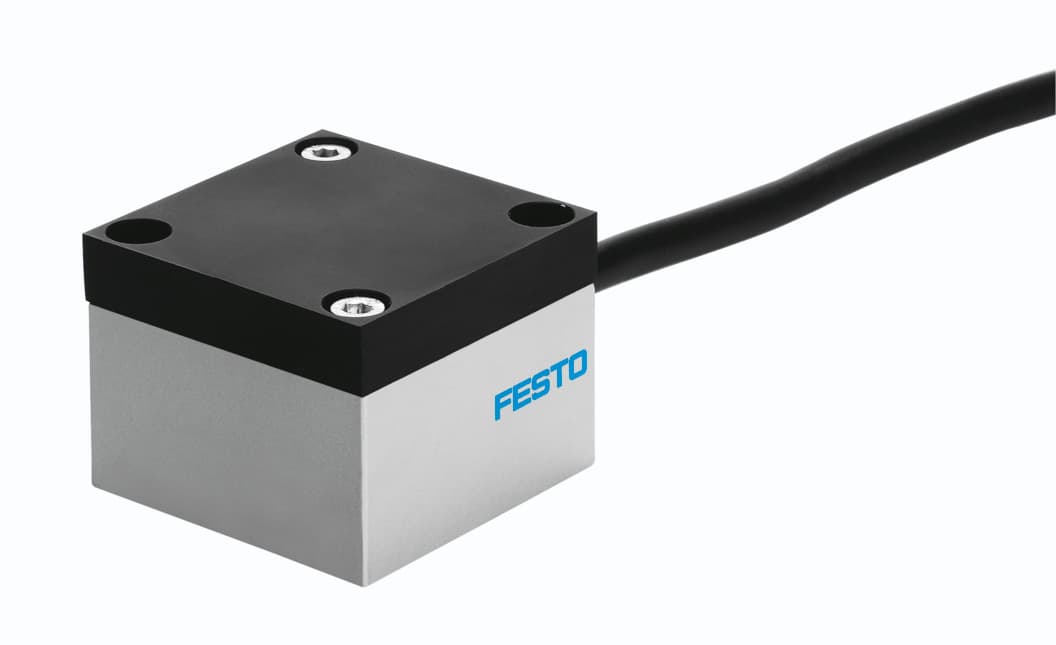

pe-1000
Product ID:8477
Updated: 2026/4/3
Key Features
- 1Measure relative pressure precisely for accurate industrial control. 2、Operate effectively within a 0 to 1 bar range for versatility. 3、Ensure reliable performance with compressed air to ISO standards. 4、Protect against environments with robust die-cast aluminum housing. 5、Integrate easily using through-hole mounting and a 1-meter cable.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00991470 |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Measured variable | Relative pressure | Method of measurement | Pneumatic/electric pressure transducer |
| Operating pressure | 0bar 1bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Ambient temperature | -10°C 50°C |
| Switching output | Contact-based | Switching function | Threshold value with fixed hysteresis |
| Switching element function | Changeover switch | Switch-on point | 0.05bar |
| Switch-off point | 0.05bar | Max. switching output voltage AC | 250V |
| Max. switching output voltage DC | 250V | Utilization category for inductive load | AC-14 DC-13 |
| Utilization category for ohmic load | AC-12 DC-12 | Electrical connection | 4-wire Cable |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Cable length | 1m | Material of cable sheath | PVC |
| Type of mounting | With through-hole | Mounting position | Any |
| Pneumatic connection | M5 | Product weight | 230g |
| Housing material | Die-cast aluminum Aluminum, anodized | Setting options | Permanently set |
| Degree of protection | IP62 | Insulation voltage | 2000V |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Contamination level | 3 |
| Manufacturer ID | 3719 |
Specifications may be subject to change without notice
