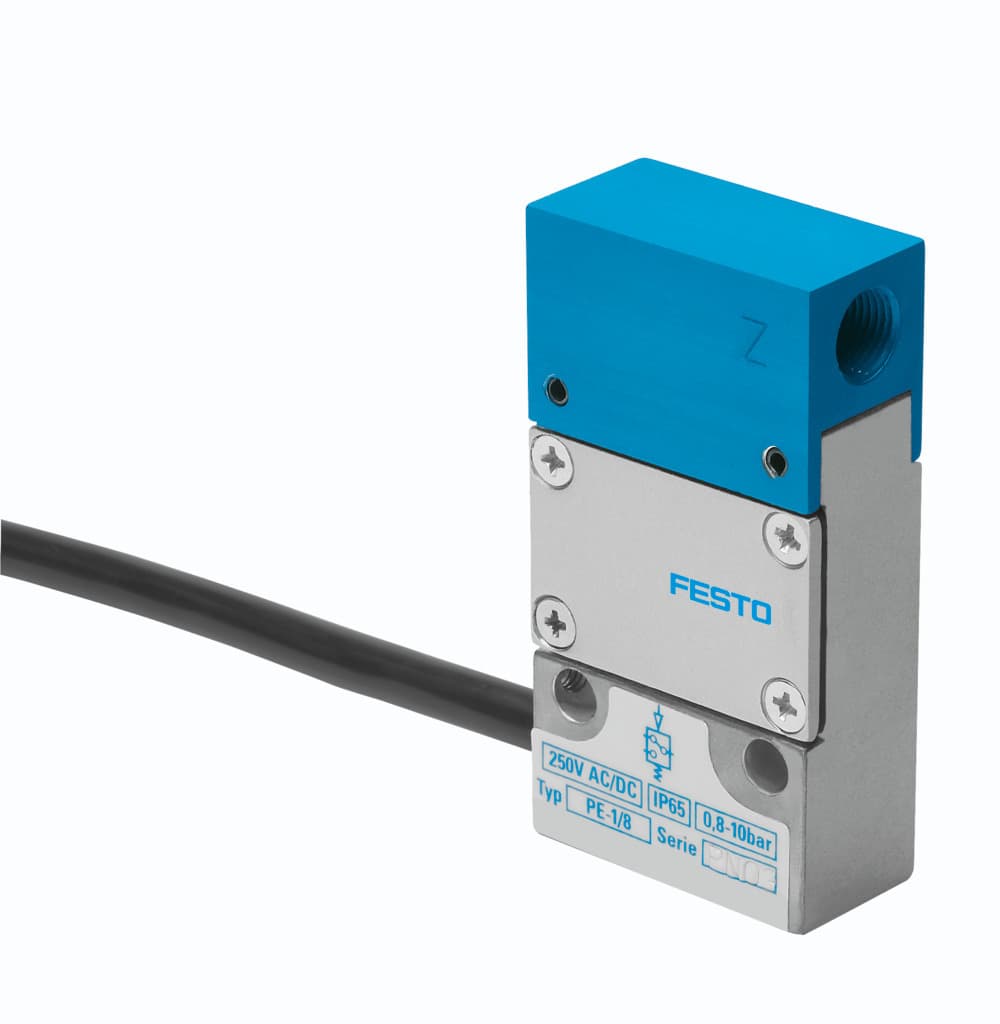

pe-1/8
Product ID:8115
Updated: 2026/4/3
Key Features
- 1Ensure precise relative pressure measurement from 0 to 8 bar. 2、Comply with EN 60947-5-1 and CE/UKCA directives for safety. 3、Utilize a robust die-cast aluminum housing for durability. 4、Connect easily via G1/8 port for flexible installation. 5、Mount on 2N frame or through-hole to save space.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00991470 |
| Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 0.8bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
| Ambient temperature | -10°C 60°C | Switching output | Contact-based |
| Switching function | Threshold value with fixed hysteresis | Switching element function | Changeover switch |
| Max. switch-on point | 0.8bar | Min. switch-off point | 0.2bar |
| Max. switching output voltage AC | 250V | Max. switching output voltage DC | 250V |
| Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
| Electrical connection | 4-wire Cable | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Cable length | 1m |
| Material of cable sheath | PVC | Type of mounting | With through-hole |
| Mounting position | Any | Pneumatic connection | G1/8 |
| Product weight | 225g | Housing material | Aluminum, anodized Die-cast zinc |
| Diaphragm material | Chloroprene rubber | Setting options | Permanently set |
| Degree of protection | IP65 | Insulation voltage | 2000V |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Contamination level | 3 |
| Manufacturer ID | 3344 |
Specifications may be subject to change without notice
