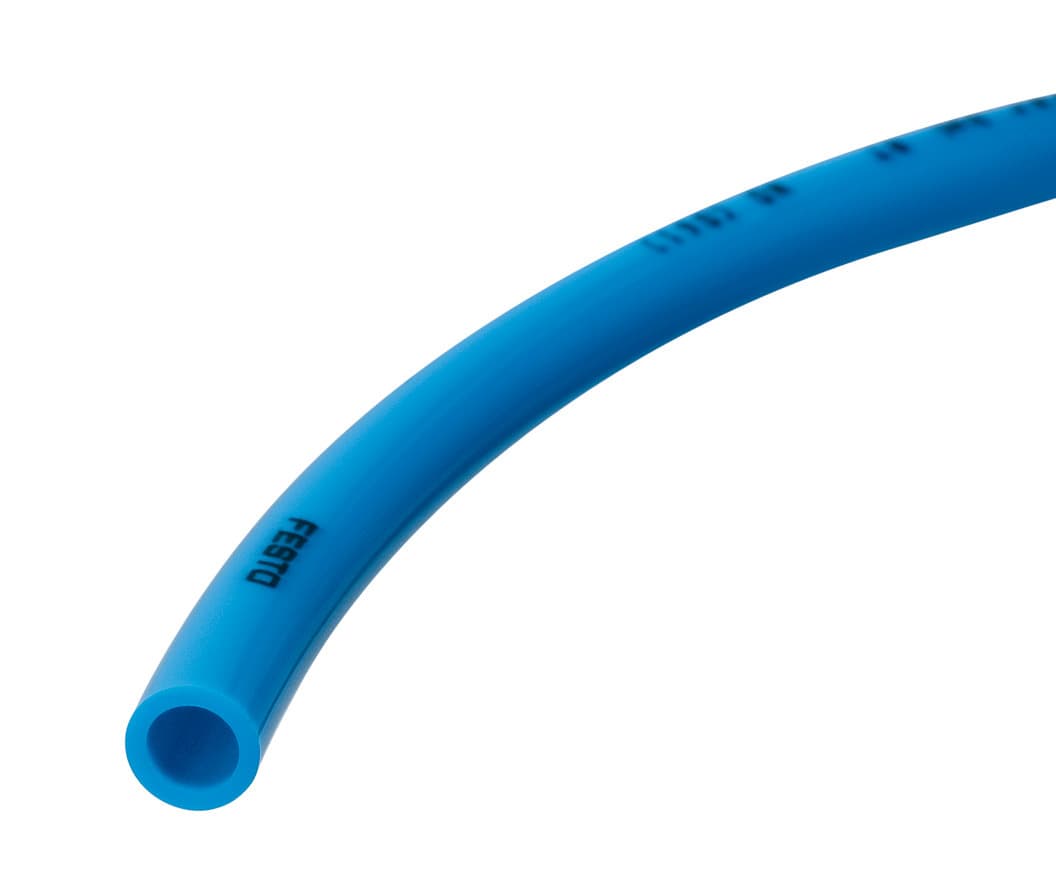

pen-1/2-bl-150-cb
Product ID:13545
Updated: 2026/4/3
Key Features
- 1Use durable polyethylene for long-lasting performance. 2、Apply to compressed air or water systems meeting ISO 8573-1:2010. 3、Connect easily with standard 1/2 inch outer diameter. 4、Deploy 150 feet to reduce joints in industrial setups. 5、Identify quickly with high-visibility blue color.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| External-? inches | 1/2 | Bending radius relevant for flow rate | 59.741mm |
| Min. bending radius | 32.918mm | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 58psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -30°C 60°C | Product weight by length | 0.848kg/m |
| Pneumatic connection | For plug connection outside diameter 1/2" | Color | Blue |
| Shore hardness | D 52 +/-3 | Note on materials | RoHS-compliant |
| Material of pneumatic tubing | PE | Manufacturer ID | 569894 |
Specifications may be subject to change without notice
