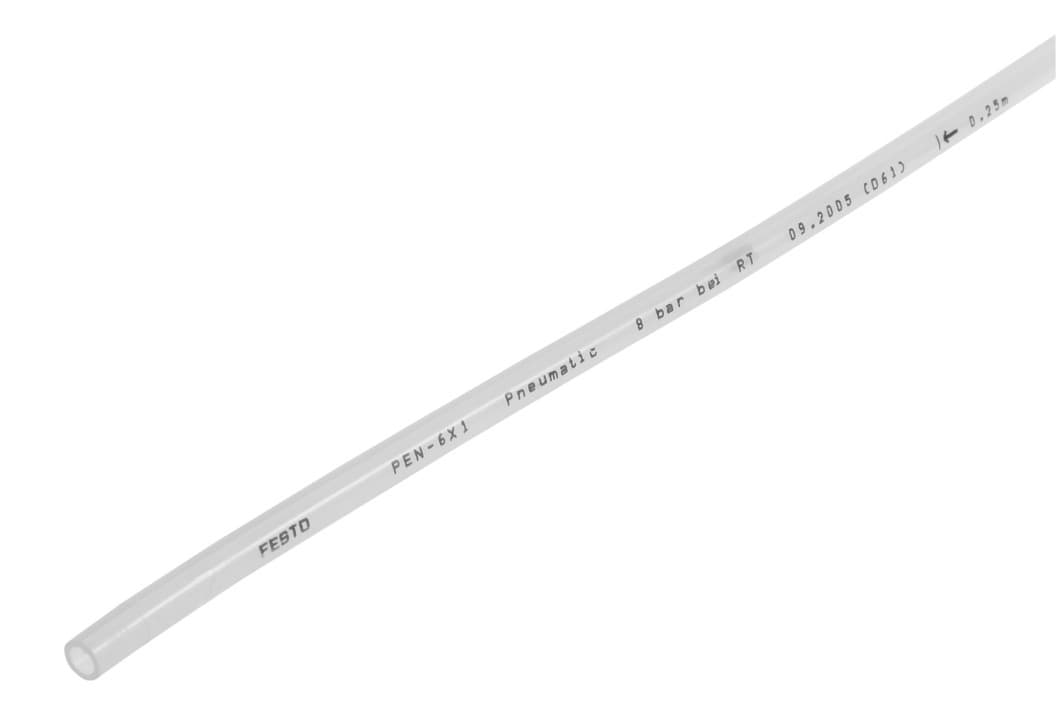

pen-14x2-nt
Product ID:13575
Updated: 2026/4/3
Key Features
- 1Exceed 5 million cycles in high-speed cable carrier applications. 2、Meet strict safety standards with TÜV certification. 3、Operate from -0.95 to 10 bar for air and water systems. 4、Ensure durability with robust polyethylene (PE) construction. 5、Simplify setup using compatible push-in connectors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 14mm | Bending radius relevant for flow rate | 80mm |
| Inside diameter | 9.5mm | Min. bending radius | 45mm |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Certification | German Technical Control Board (TüV) |
| Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -30°C 60°C | Product weight by length | 0.0773kg/m |
| Pneumatic connection | For plug connection outside diameter 14 mm | Color | Natural |
| Shore hardness | D 52 +/-3 | Note on materials | RoHS-compliant |
| Material of pneumatic tubing | PE | Manufacturer ID | 570517 |
Specifications may be subject to change without notice
