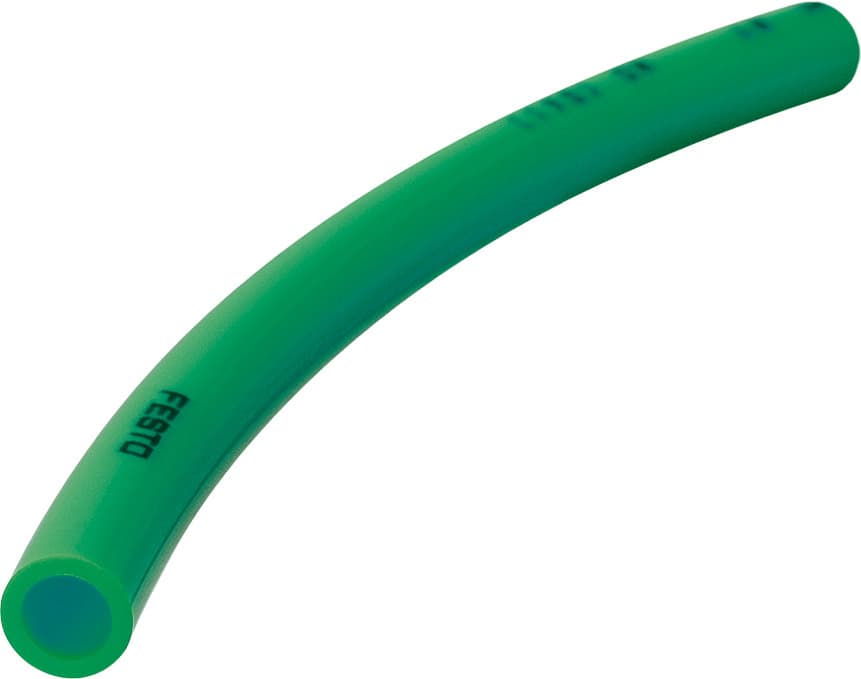

pen-6x1-gn
Product ID:11886
Updated: 2026/4/3
Key Features
- 1Ensure durability with RoHS-compliant polyethylene (PE) material. 2、Maximize uptime in energy chains with high cycle rates. 3、Handle pressures from -0.95 to 10 bar across temperatures. 4、Meet ISO 8573-1 and VDMA24364-B2-L industry standards. 5、Simplify installation with 6mm OD for push-in connectors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 6mm | Bending radius relevant for flow rate | 26mm |
| Inside diameter | 4mm | Min. bending radius | 13.5mm |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Certification | German Technical Control Board (TüV) |
| Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -30°C 60°C | Product weight by length | 0.01477kg/m |
| Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm | Color | Green |
| Shore hardness | D 52 +/-3 | Note on materials | RoHS-compliant |
| Material of pneumatic tubing | PE | Manufacturer ID | 551469 |
Specifications may be subject to change without notice
