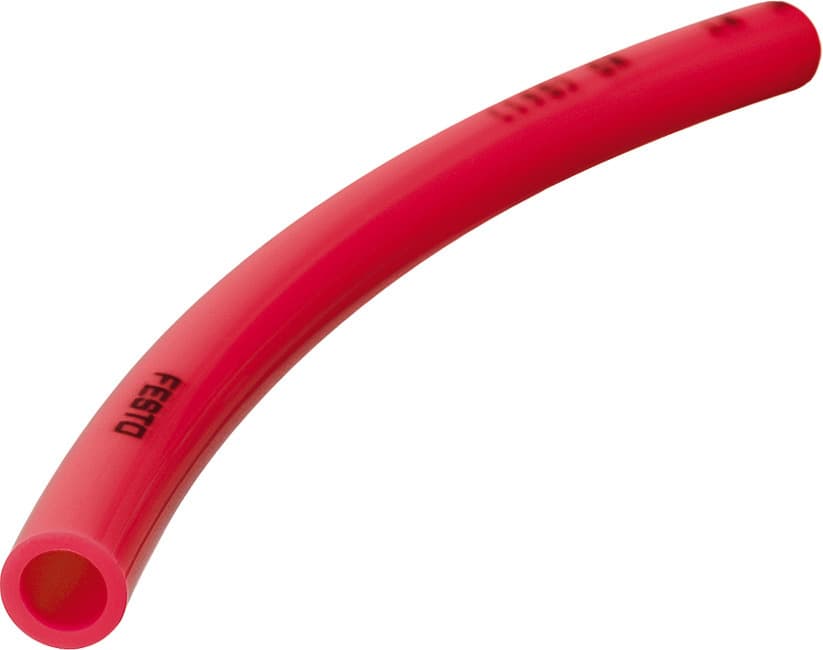

pen-6x1-rt
Product ID:11892
Updated: 2026/7/4
Key Features
- 1Utilize highly resistant PE material for flexibility and durability.
- 2Operate within a wide -0.95 to 10 bar pressure range.
- 3Install easily with optimized bending radii.
- 4Resist abrasion in high-cycle energy chain applications.
- 5Meet VDMA24364-B2-L and RoHS quality standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 6mm | Bending radius relevant for flow rate | 26mm |
| Inside diameter | 4mm | Min. bending radius | 13.5mm |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Certification | German Technical Control Board (TüV) |
| Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -30°C 60°C | Product weight by length | 0.01477kg/m |
| Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm | Color | Red |
| Shore hardness | D 52 +/-3 | Note on materials | RoHS-compliant |
| Material of pneumatic tubing | PE | Manufacturer ID | 551475 |
Specifications may be subject to change without notice
