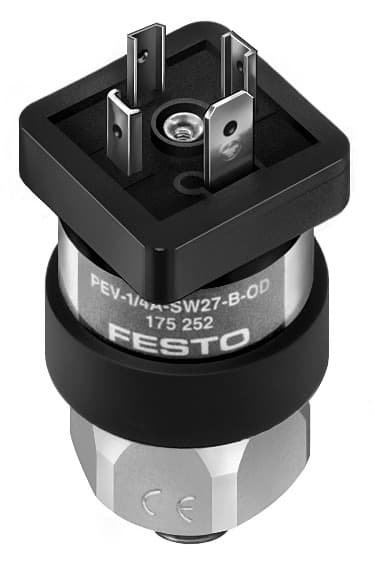

pev-1/4-a-sw27-b-od
Product ID:5385
Updated: 2026/4/3
Key Features
- 1Ensure precise control with engineered accuracy for reliable performance. 2、Apply universally or configure individually for versatile factory setups. 3、Reduce maintenance using durable, high-quality materials for long life. 4、Integrate seamlessly with other Festo components to simplify installation. 5、Customize solutions for directional, flow, or pressure control needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991472 | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Temperature of medium | -20°C 80°C |
| Ambient temperature | -30°C 100°C | Switching element function | Changeover switch |
| Max. switching frequency | 3Hz | Max. switching output voltage AC | 250V |
| Max. switching output voltage DC | 250V | Max. output current | 4000mA |
| Electrical connection | 4-pin Plug | Type of mounting | Screw-in |
| Mounting position | Any | Pneumatic connection | G1/4 |
| Product weight | 900g | Housing material | PA66-GF30 Steel, galvanized |
| Diaphragm material | NBR | Setting range threshold value | 1bar 10bar |
| Degree of protection | IP65 | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Manufacturer ID | 175252 |
Specifications may be subject to change without notice
