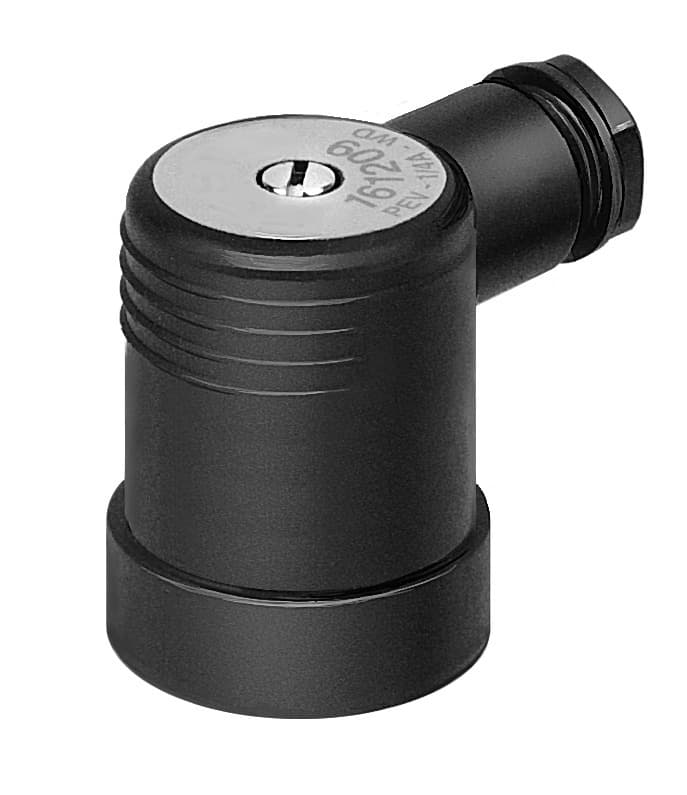

pev-1/4-a-wd
Product ID:4090
Updated: 2026/4/3
Key Features
- 1Secure connections with a 4-pin interface. 2、Withstand harsh conditions using IP65 protection. 3、Operate reliably from -40°C to 90°C. 4、Simplify installation with an angled plug design. 5、Ensure long-term value with Festo quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | With through-hole | Electrical connection | 4-pin Socket, angled |
| Degree of protection | IP65 | Ambient temperature | -40°C 90°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Note on materials | RoHS-compliant |
| Manufacturer ID | 161209 |
Specifications may be subject to change without notice
