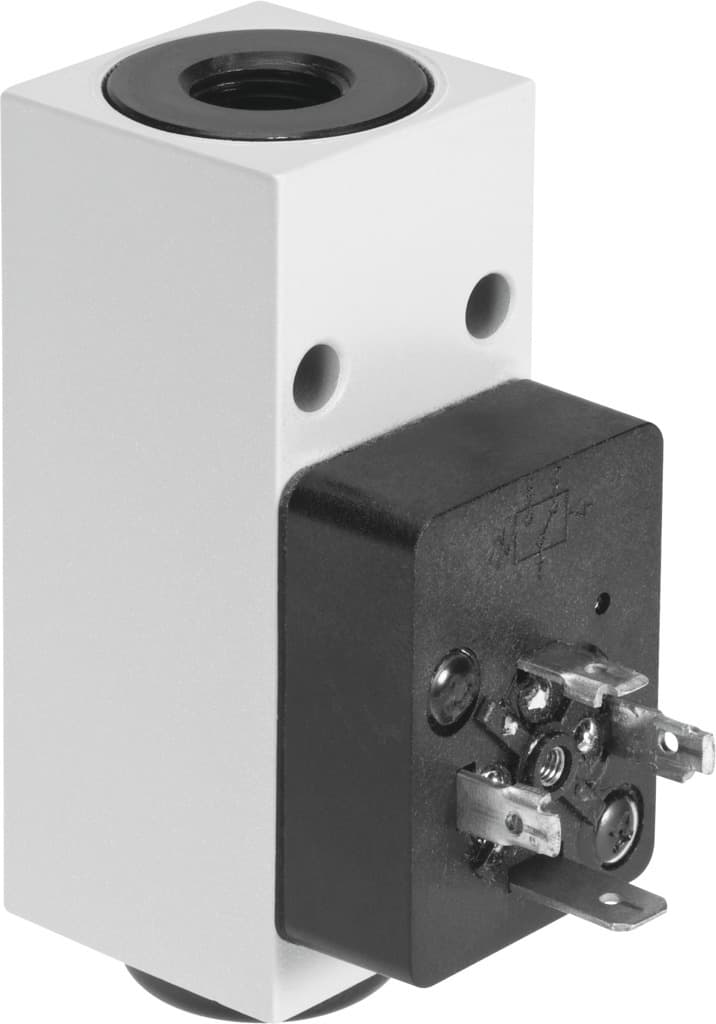

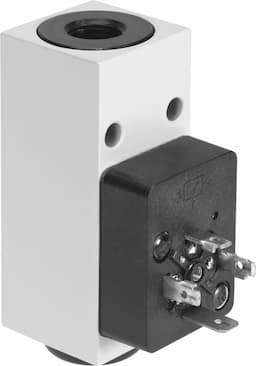

pev-1/4-b-od
Product ID:5384
Updated: 2026/4/3
Key Features
- 1Meet EN 60947-5-1 standards for reliable automation. 2、Operate with compressed air and water from 1 to 12 bar. 3、Construct durable die-cast aluminum housing with silver contacts. 4、Achieve efficient control with up to 3 Hz switching frequency. 5、Integrate easily via through-hole mounting per DIN 43650.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00991471 |
| Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Note on materials | RoHS-compliant | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 1bar 12bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20°C 80°C | Ambient temperature | -20°C 80°C |
| Switching element function | Changeover switch | Max. switching frequency | 3Hz |
| Max. switching output voltage AC | 250V | Max. switching output voltage DC | 125V |
| Max. output current | 5000mA | Minimum load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5V |
| Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
| Electrical connection | Form A Plug as per DIN 43650 Rectangular design | Type of mounting | With through-hole |
| Mounting position | Any | Pneumatic connection | G1/4 |
| Product weight | 194g | Housing material | Die-cast aluminum |
| Switching contact material | Silver | Switching status indication | LED yellow |
| Setting range threshold value | 1bar 12bar | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Manufacturer ID | 175250 |
Specifications may be subject to change without notice
