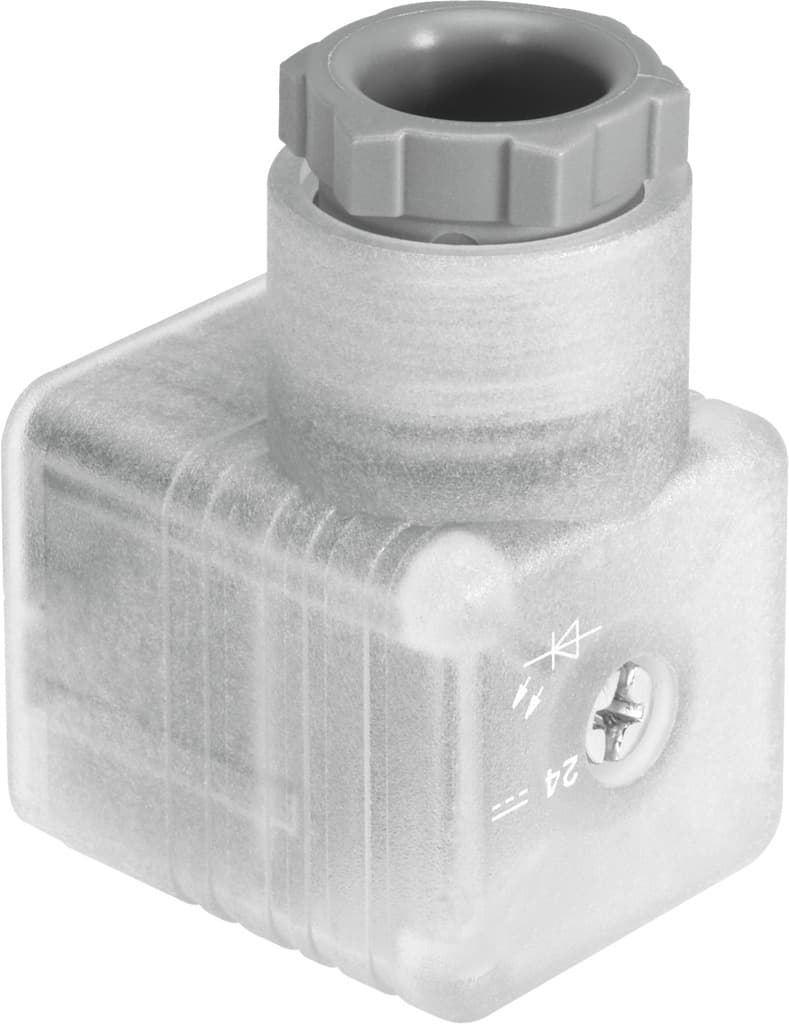

pev-1/4-wd-led-24
Product ID:4807
Updated: 2026/4/3
Key Features
- 1Operate within a 15-30V DC range for low-voltage systems. 2、Support 8A current for reliable sensor and connector performance. 3、Monitor status easily with yellow and green LED indicators. 4、Withstand harsh conditions from -40°C to 90°C. 5、Achieve IP65 protection for durability in diverse environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 175301-803 | Switching status indication | LED yellow LED green |
| Type of mounting | Screwed tightly | Cable outlet | Angled |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Central screw M3 | Electrical connection 2, function | Control side |
| Electrical connection 2, connection technology | Screw terminal | Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 | DC operating voltage range | 15V 30V |
| Current rating at 40° C | 8A | Cable fitting | Pg11 |
| Approved cable diameter | 4.5mm 11mm | Connection cross section | 0.25mm2 1.5mm2 |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -40°C 80°C | Note on ambient temperature | Note derating |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Housing material | PA6-reinforced | Housing colour | Transparent |
| Material of pin contacts | Brass Nickel-plated Tin-plated | Manufacturer ID | 164274 |
