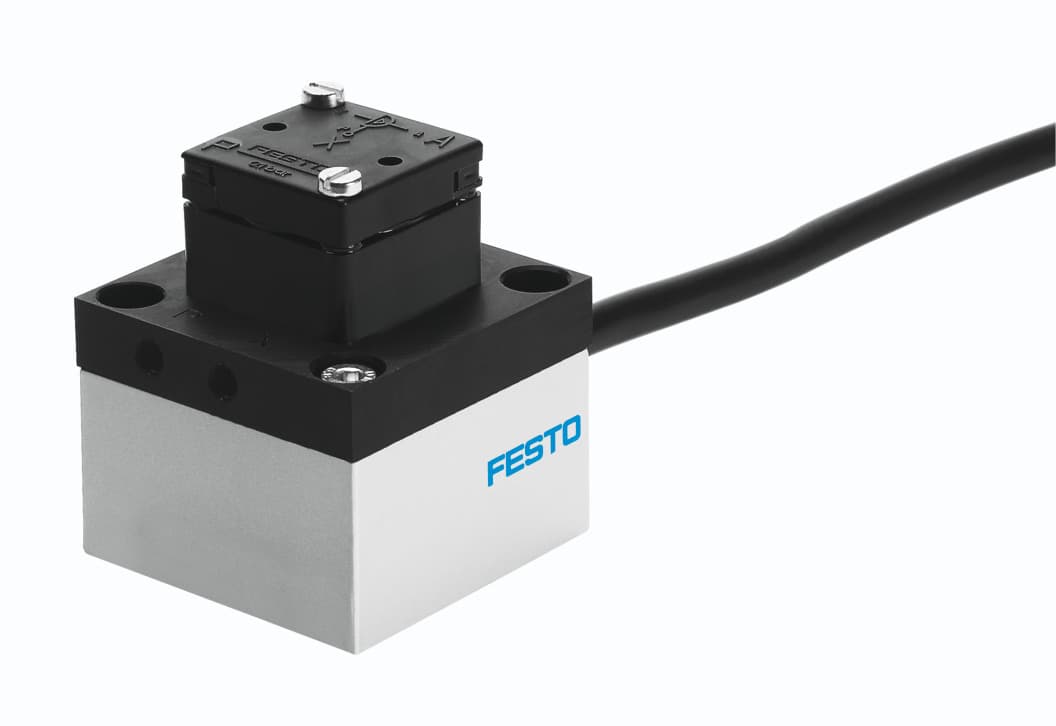

pe-vk-5.1
Product ID:14807
Updated: 2026/4/3
Key Features
- 1Measure relative pressure with high precision for reliable operation. 2、Integrate seamlessly into pneumatic and electrical systems. 3、Withstand harsh conditions with robust IP62 protection. 4、Save space with a lightweight 250g compact design. 5、Ensure global compliance with CE and CCC certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00991470 |
| Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 0bar 0.25bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Ambient temperature | -10°C 50°C | Switching output | Contact-based |
| Switching function | Threshold value with fixed hysteresis | Switching element function | Changeover switch |
| Switch-on point | 5.0E-4bar | Switch-off point | 1.0E-4bar |
| Max. switching output voltage AC | 250V | Max. switching output voltage DC | 250V |
| Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
| Electrical connection | 4-wire Cable | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Cable length | 1m |
| Material of cable sheath | PVC | Type of mounting | With through-hole |
| Mounting position | Any | Pneumatic connection | M5 |
| Product weight | 250g | Housing material | ABS Die-cast aluminum Aluminum, anodized |
| Setting options | Permanently set | Degree of protection | IP62 |
| Insulation voltage | 2000V | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Contamination level | 3 | Manufacturer ID | 7451 |
Specifications may be subject to change without notice
