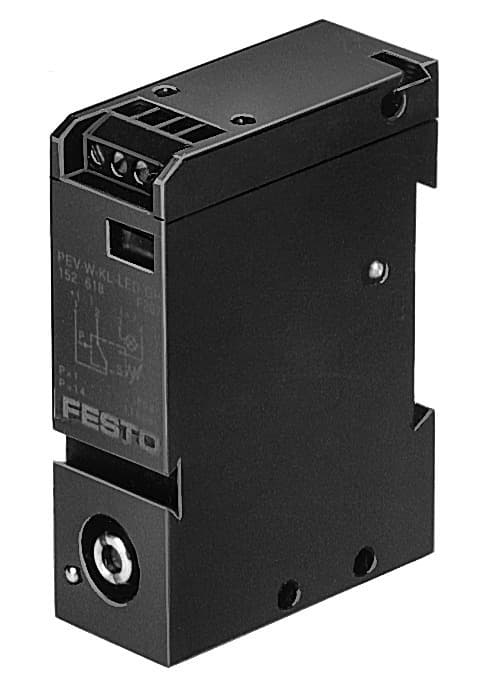

pev-w-kl-led-gh
Product ID:2337
Updated: 2026/4/3
Key Features
- 1Measure pressure precisely from 2 to 8 bar for reliable system control. 2、Monitor status easily with a clear yellow LED indicator. 3、Operate reliably across a wide 0 to 60 °C temperature range. 4、Withstand moderate corrosion with robust PA, PET, and POM construction. 5、Install flexibly using through-hole or top-hat rail mounting options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991472 | Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Pressure measuring range | 2bar 8bar |
| Operating pressure | 0bar 8bar | Max. overload pressure | 20bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | 0°C 60°C | Ambient temperature | 0°C 60°C |
| Switching element function | Changeover switch | Hysteresis | 0.5bar 2bar |
| Max. switching frequency | 3Hz | Max. output current | 2500mA |
| DC operating voltage range | 10V 30V | Electrical connection | 4-pin Screw terminal |
| Type of mounting | Optionally: With through-hole With H-rail | Mounting position | Any |
| Pneumatic connection | M5 | Product weight | 56g |
| Housing material | PA PET POM | Diaphragm material | NBR |
| Switching status indication | LED yellow | Setting range threshold value | 2bar 8bar |
| Degree of protection | IP20 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 152618 |
Specifications may be subject to change without notice
