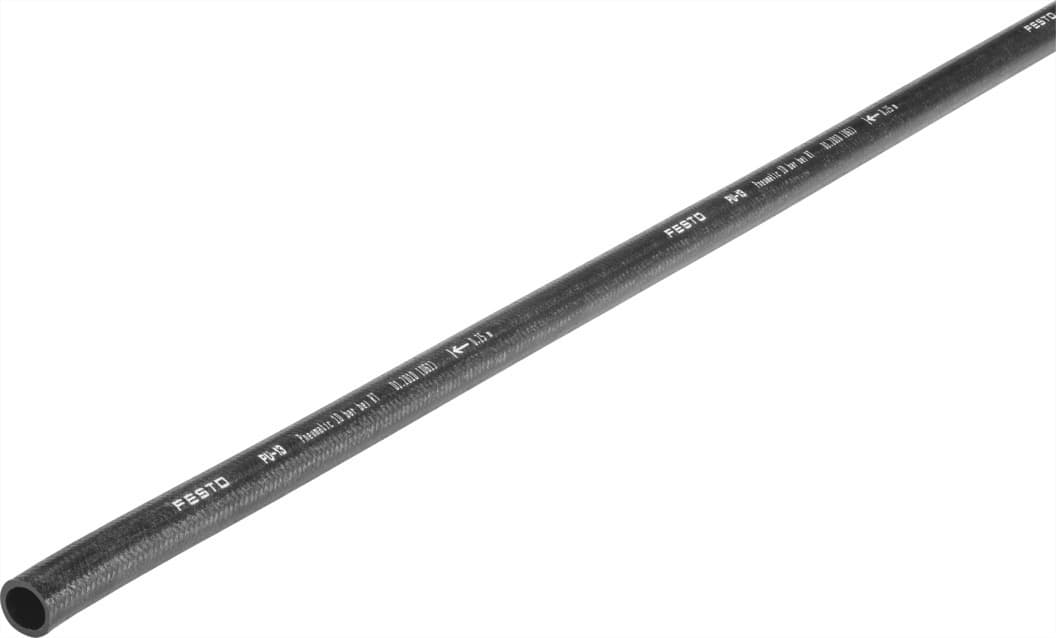

pu-13-sw
Product ID:852
Updated: 2026/7/4
Key Features
- 1Ensure precise fit with 17.6 mm OD and 13 mm ID.
- 2Optimize fluid flow with an 83 mm bending radius.
- 3Operate from -35°C to 60°C at up to 10 bar.
- 4Gain durability from RoHS-compliant TPE-U material.
- 5Install easily with a Shore hardness of A 86 +/-3.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 17.6mm | Bending radius relevant for flow rate | 83mm |
| Inside diameter | 13mm | Operating pressure for entire temperature range | -0.95bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.133kg/m | Pneumatic connection | For barbed fitting, inside diameter 13 mm, with union nut |
| Color | Black | Shore hardness | A 86 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 12133 |
Specifications may be subject to change without notice
