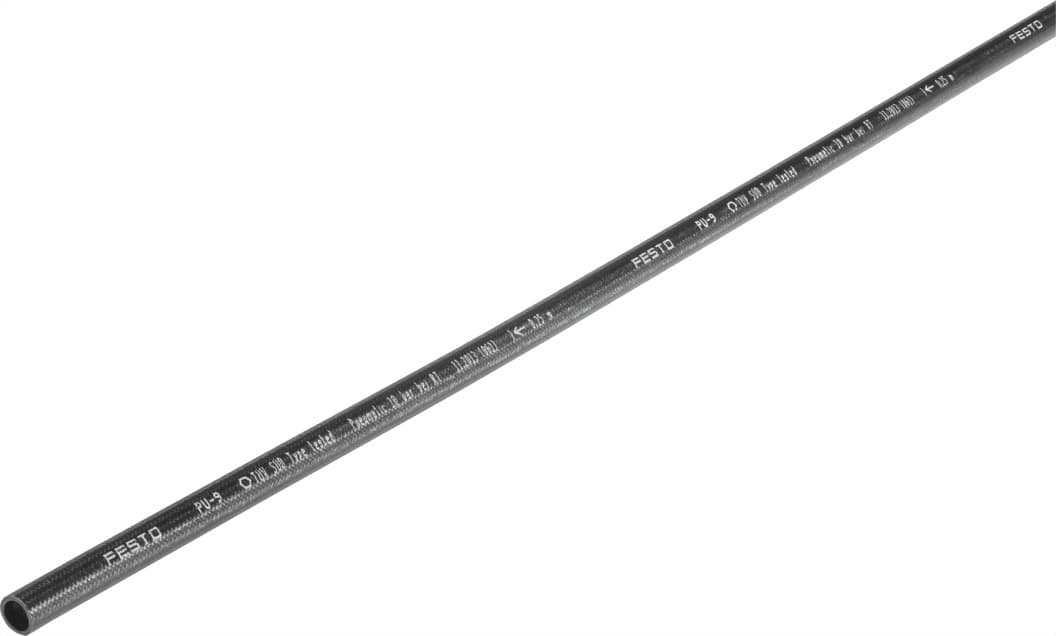

pu-9-sw
Product ID:853
Updated: 2026/7/4
Key Features
- 1Resist abrasion and kinks for reliable industrial use.
- 2Comply with ISO 8573-1:2010 for high pneumatic standards.
- 3Operate from -35°C to 60°C and up to 10 bar pressure.
- 4Install easily with barbed connectors and nuts.
- 5Meet RoHS compliance for environmental safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 11.6mm | Bending radius relevant for flow rate | 76mm |
| Inside diameter | 9mm | Operating pressure for entire temperature range | 0bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.056kg/m | Pneumatic connection | For barbed fitting, inside diameter 9 mm, with union nut |
| Color | Black | Shore hardness | A 91 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 12134 |
Specifications may be subject to change without notice
