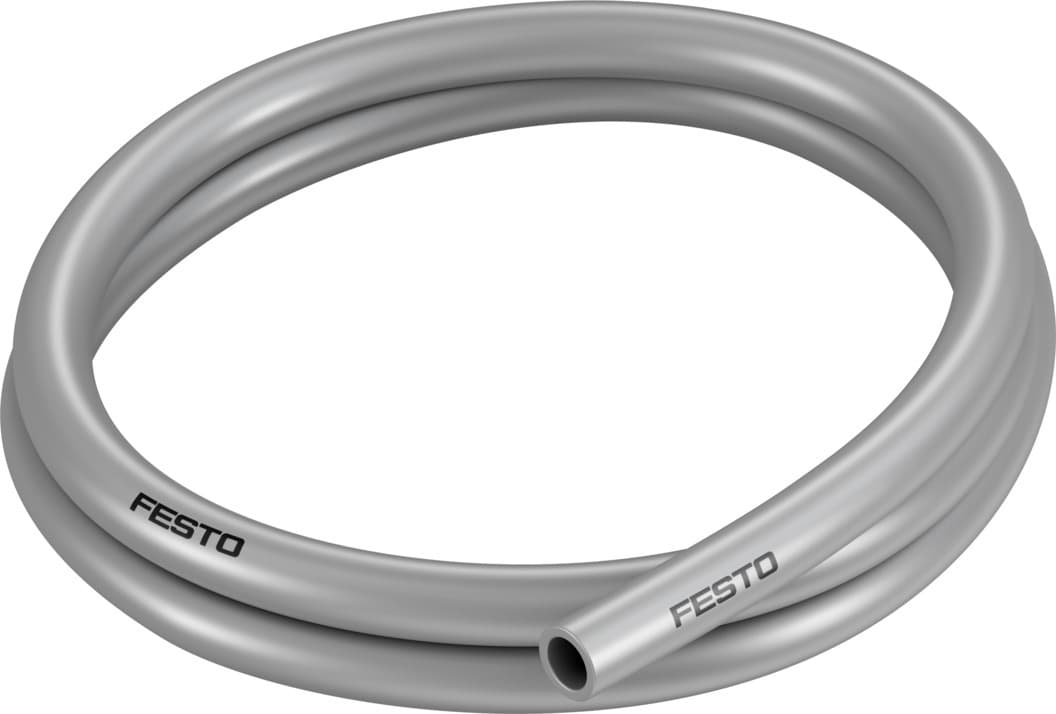

pun-16x2,5-si
Product ID:2328
Updated: 2026/4/4
Key Features
- 1Endure over 5 million cycles in energy chains for reliable high-speed automation. 2、Operate within a wide pressure range of -0.95 to 10 bar for versatile applications. 3、Ensure compressed air purity compliant with ISO 8573-1:2010 standards. 4、Utilize TPE-U(PU) material free from copper and PTFE for safety. 5、Achieve flexible installation with a minimum bending radius of 45 mm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 16mm | Bending radius relevant for flow rate | 88mm |
| Inside diameter | 11mm | Min. bending radius | 45mm |
| Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.1294kg/m | Pneumatic connection | For plug connection outside diameter 16 mm |
| Color | Silver | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 152590 |
Specifications may be subject to change without notice
