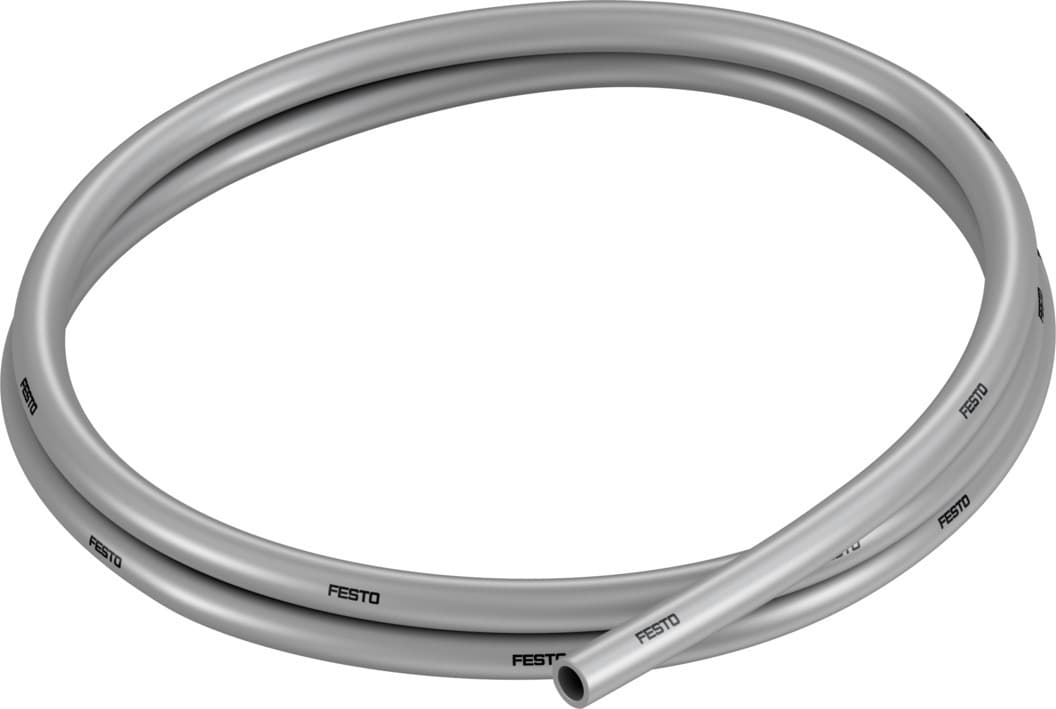

pun-8x1,25-si
Product ID:2325
Updated: 2026/7/6
Key Features
- 1Withstand up to 10 bar pressure for reliable system operation.
- 2Feature a 37mm bending radius for easy installation in tight spaces.
- 3Construct from durable TPE-U material with chemical resistance.
- 4Carry TÜV approval and RoHS compliance for safety.
- 5Order in-stock 50m lengths for 24-hour shipment.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
| Inside diameter | 5.7mm | Min. bending radius | 24mm |
| Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0302kg/m | Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm |
| Color | Silver | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 152587 |
Specifications may be subject to change without notice
