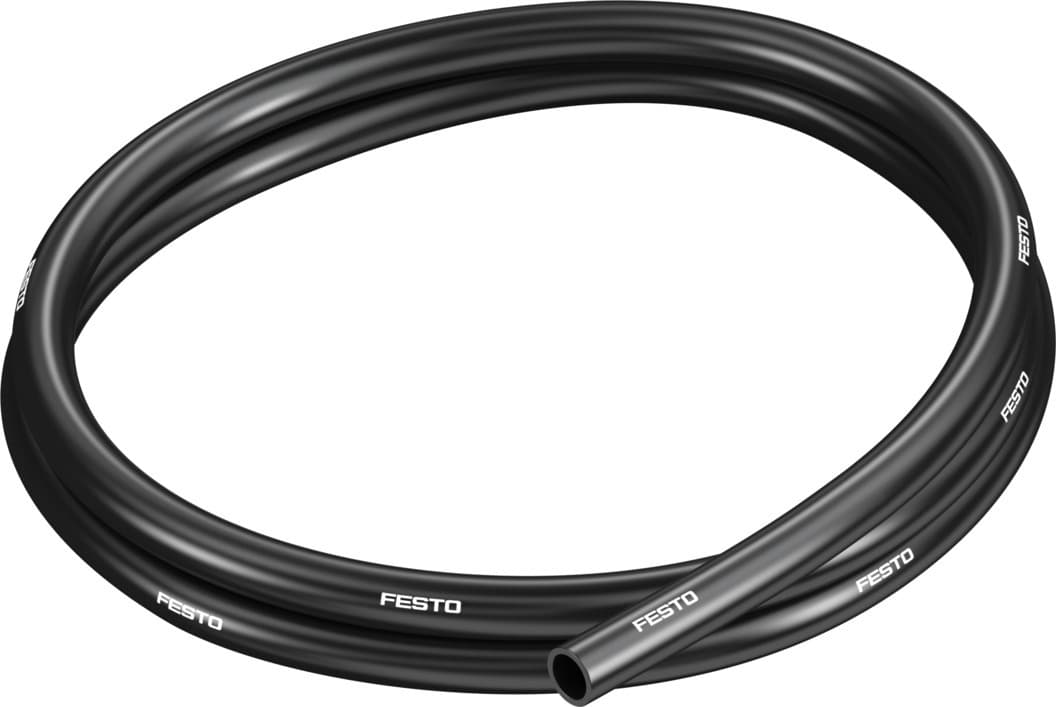

pun-cm-10-sw
Product ID:1095
Updated: 2026/4/3
Key Features
- 1Ensure a precise fit with a 10 mm outside diameter for various pneumatic applications. 2、Optimize fluid flow with a flow-relevant bending radius of 60 mm for high-cycle use. 3、Provide flexibility and durability with a 7 mm inside diameter and 30 mm minimum bending radius. 4、Ensure compatibility by working with compressed air per ISO 8573-1:2010 standards. 5、Offer excellent resistance with RoHS-compliant, copper-free TPE-U(PU) material up to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 10mm | Bending radius relevant for flow rate | 60mm |
| Inside diameter | 7mm | Min. bending radius | 30mm |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
| Surface resistance | 0.01MOhm 10MOhm | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.05158kg/m | Pneumatic connection | For plug connection outside diameter 10 mm |
| Color | Black | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 130817 |
Specifications may be subject to change without notice
