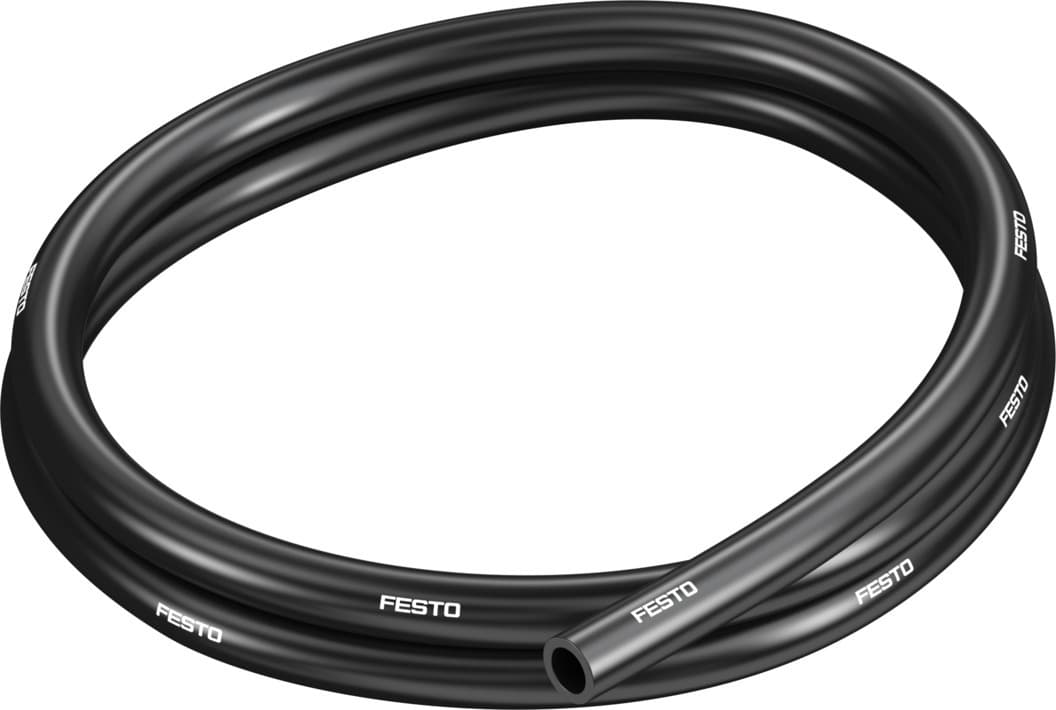

pun-cm-12-sw
Product ID:1096
Updated: 2026/7/4
Key Features
- 1Boast a 12mm OD and 8mm ID for versatile pneumatic use.
- 2Ensure efficient flow with a 70mm flow-relevant bending radius.
- 3Design for reliable use within demanding energy chains.
- 4Operate in a wide -35°C to 60°C temperature range.
- 5Feature RoHS-compliant TPE-U(PU) material for safe performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 12mm | Bending radius relevant for flow rate | 70mm |
| Inside diameter | 8mm | Min. bending radius | 30mm |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -13.775psi 145psi |
| Surface resistance | 0.01MOhm 10MOhm | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.08107kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
| Color | Black | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 130818 |
Specifications may be subject to change without notice
