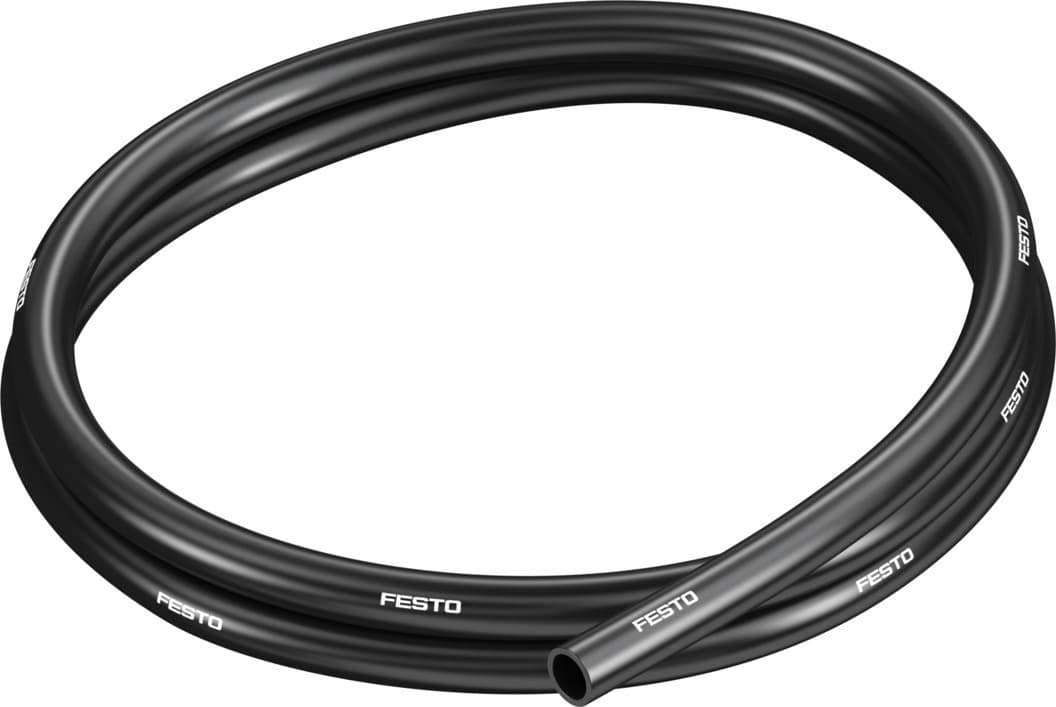

pun-h-10x1,5-sw-25
Product ID:55
Updated: 2026/4/3
Key Features
- 1Utilize hydrolysis-resistant Festo pun-h-10x1,5-sw-25 tubing for food-safe applications. 2、Achieve precise flow with 10 mm OD and 7 mm ID pneumatic connections. 3、Integrate into energy chains with a 28 mm minimum bending radius. 4、Operate reliably across a wide -0.95 to 10 bar pressure range. 5、Ensure compliance with TÜV and ISO8573-1:2010 certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 10mm | Bending radius relevant for flow rate | 52mm |
| Inside diameter | 7mm | Min. bending radius | 28mm |
| Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
| Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0465kg/m | Pneumatic connection | For plug connection outside diameter 10 mm |
| Color | Black | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 8204443 |
Specifications may be subject to change without notice
