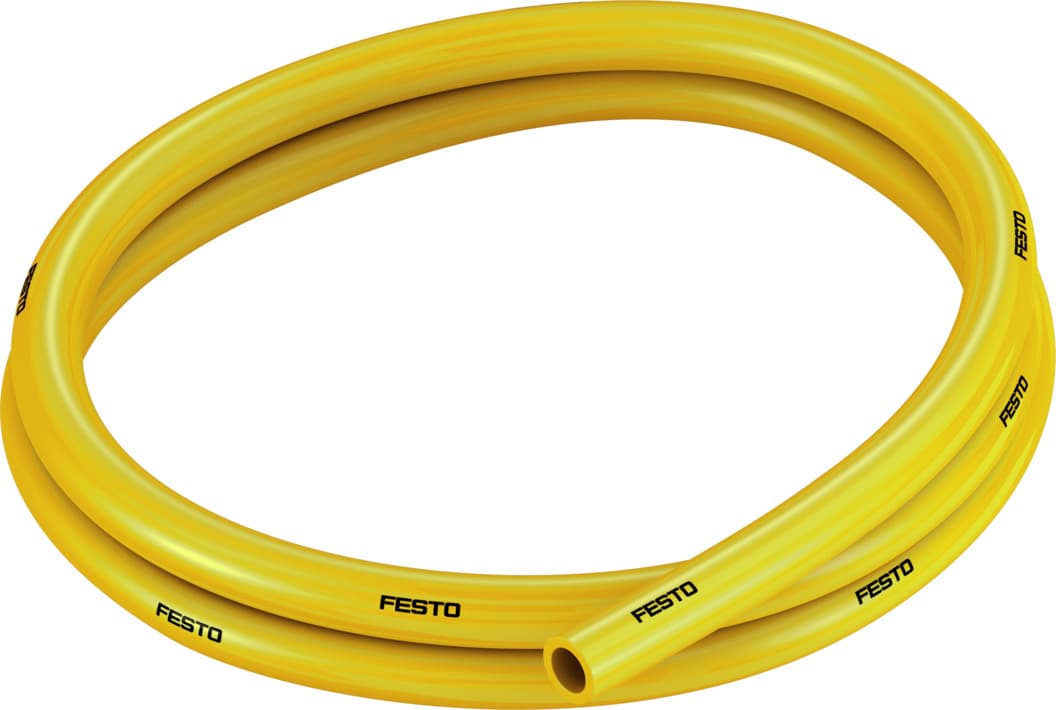

pun-h-1/2-ge-150-cb
Product ID:13488
Updated: 2026/4/3
Key Features
- 1Utilize high-quality TPE-U material for extended durability and performance. 2、Operate reliably across a wide temperature range from -35°C to 63°C. 3、Achieve flexible routing with a 62.20mm bending radius for easy installation. 4、Handle both compressed air and water applications with versatile compatibility. 5、Ensure safety and quality compliance with RoHS and VDMA24364 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| External-? inches | 1/2 | Bending radius relevant for flow rate | 62.179mm |
| Min. bending radius | 22.86mm | Application note | TPE-U Ether based |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
| Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
| Product weight by length | 0.88kg/m | Pneumatic connection | For plug connection outside diameter 1/2" |
| Color | Yellow | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 567975 |
Specifications may be subject to change without notice
