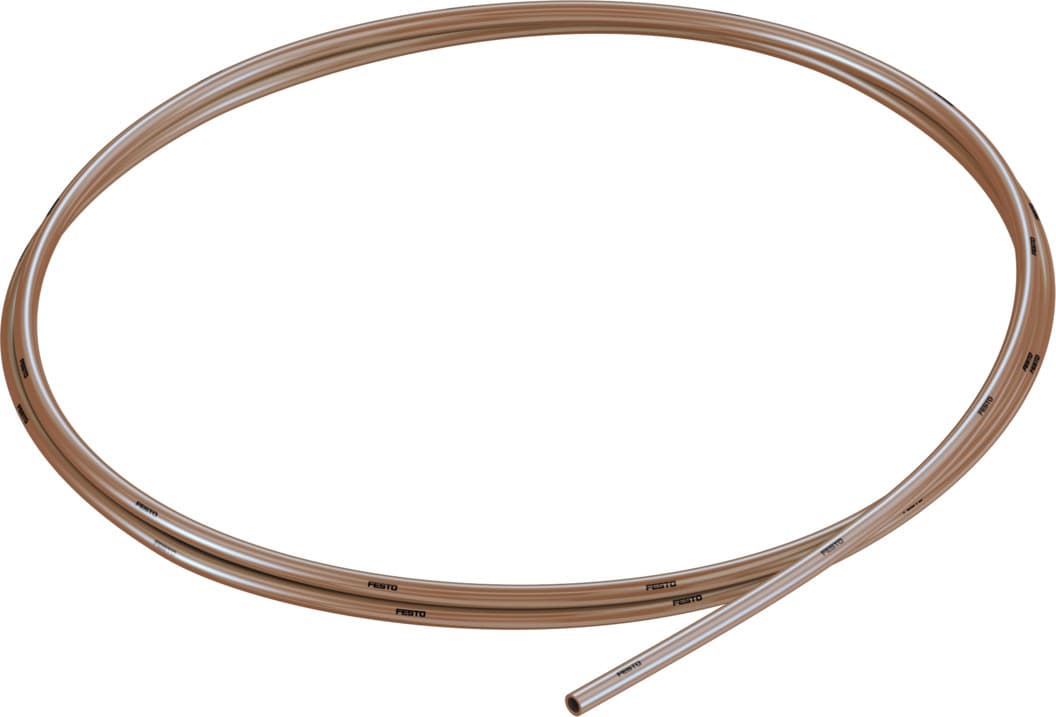

pun-h-1/8-br-150-cb
Product ID:13500
Updated: 2026/4/3
Key Features
- 1Utilize flexible and hydrolysis-resistant design for durability. 2、Apply to compressed air, vacuum, and water systems. 3、Resist microbes and hydrolysis effectively in harsh conditions. 4、Operate with compressed air, vacuum, or water as the medium. 5、Configure within a modular system for custom solutions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| External-? inches | 1/8 | Bending radius relevant for flow rate | 11.887mm |
| Min. bending radius | 6.096mm | Application note | TPE-U Ether based |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
| Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
| Product weight by length | 0.06kg/m | Pneumatic connection | For plug connection outside diameter 1/8" |
| Color | Brown | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 567993 |
Specifications may be subject to change without notice
