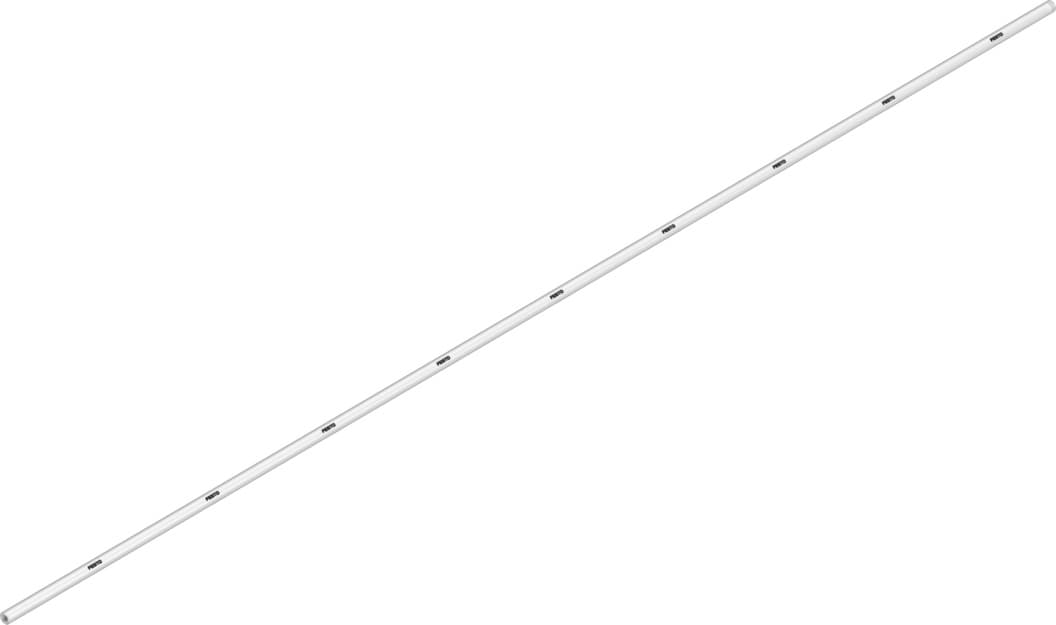

pun-h-2x0,4-nt
Product ID:1307
Updated: 2026/7/5
Key Features
- 1Ensure reliability in high-cycle pneumatic applications.
- 2Utilize hydrolysis-resistant material for food-safe operations.
- 3Achieve precise flow with 2mm OD and 1.2mm ID.
- 4Install easily with a 5 mm minimum bending radius.
- 5Meet ISO8573-1:2010 standards for compressed air compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 2mm | Bending radius relevant for flow rate | 8mm |
| Inside diameter | 1.2mm | Min. bending radius | 5mm |
| Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0024kg/m | Pneumatic connection | For plug connection outside diameter 2 mm |
| Color | Natural | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 133038 |
Specifications may be subject to change without notice
