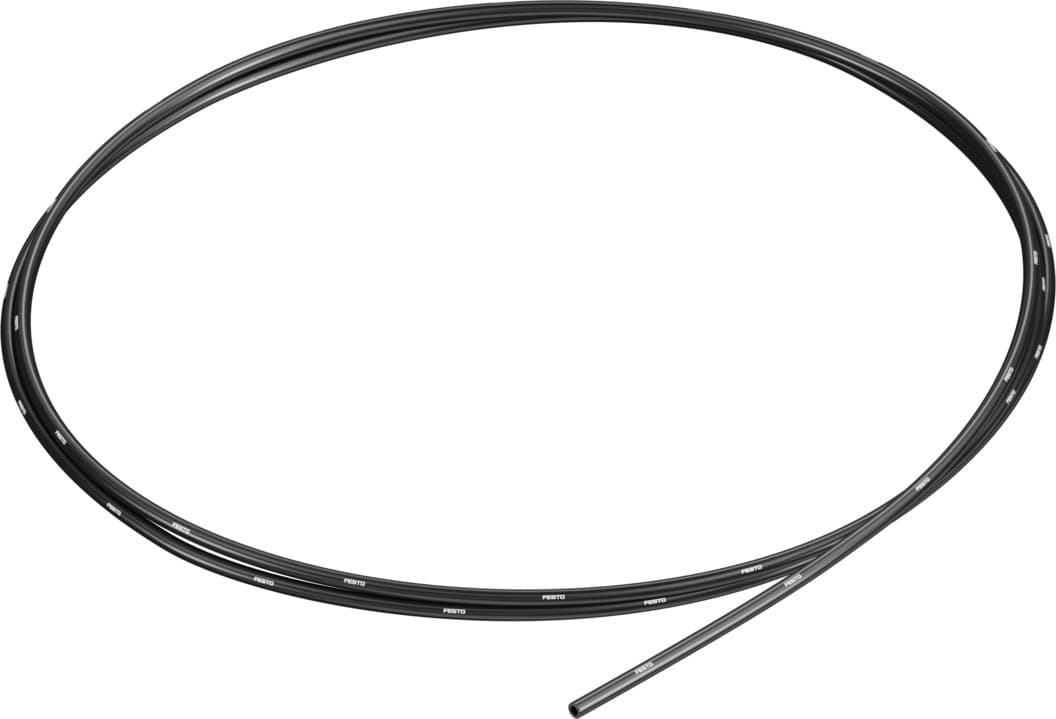

pun-h-2x0,4-sw
Product ID:1308
Updated: 2026/4/4
Key Features
- 1Resist hydrolysis for safe use in food and high-moisture industries. 2、Withstand over 5 million cycles in high-speed energy chains. 3、Operate reliably from -0.95 to 6 bar across temperatures. 4、Ensure optimal air supply per ISO 8573-1:2010 standards. 5、Simplify installation and monitoring with push-in fittings and transparent options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 2mm | Bending radius relevant for flow rate | 8mm |
| Inside diameter | 1.2mm | Min. bending radius | 5mm |
| Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0024kg/m | Pneumatic connection | For plug connection outside diameter 2 mm |
| Color | Black | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 133039 |
Specifications may be subject to change without notice
