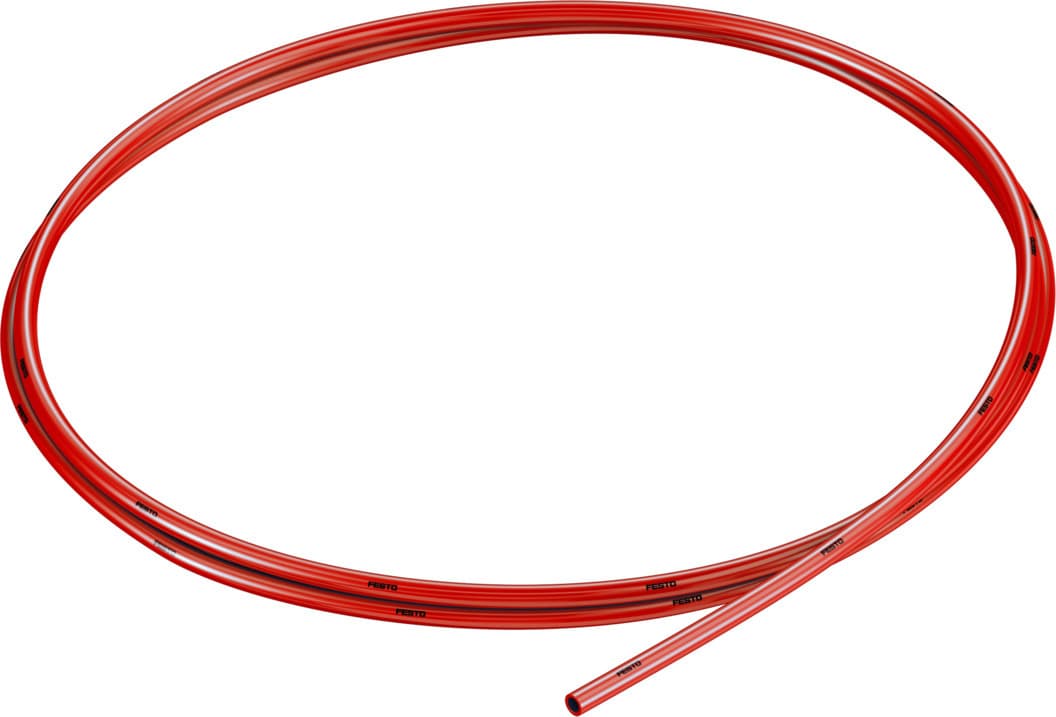

pun-h-3x0,5-rt
Product ID:12767
Updated: 2026/7/4
Key Features
- 1Ensure high flexibility and hydrolysis resistance for durable pneumatic systems.
- 2Meet food industry safety standards with FDA-compliant PUN-H-3X0,5-RT tubing.
- 3Connect seamlessly to various fittings including push-in connectors.
- 4Operate reliably within a pressure range of -0.95 to +10 bar.
- 5Withstand broad temperatures from -35°C to +60°C for versatile use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 3mm | Bending radius relevant for flow rate | 12mm |
| Inside diameter | 2.1mm | Min. bending radius | 6mm |
| Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
| Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0042kg/m | Pneumatic connection | For plug connection outside diameter 3 mm |
| Color | Red | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 558284 |
Specifications may be subject to change without notice
