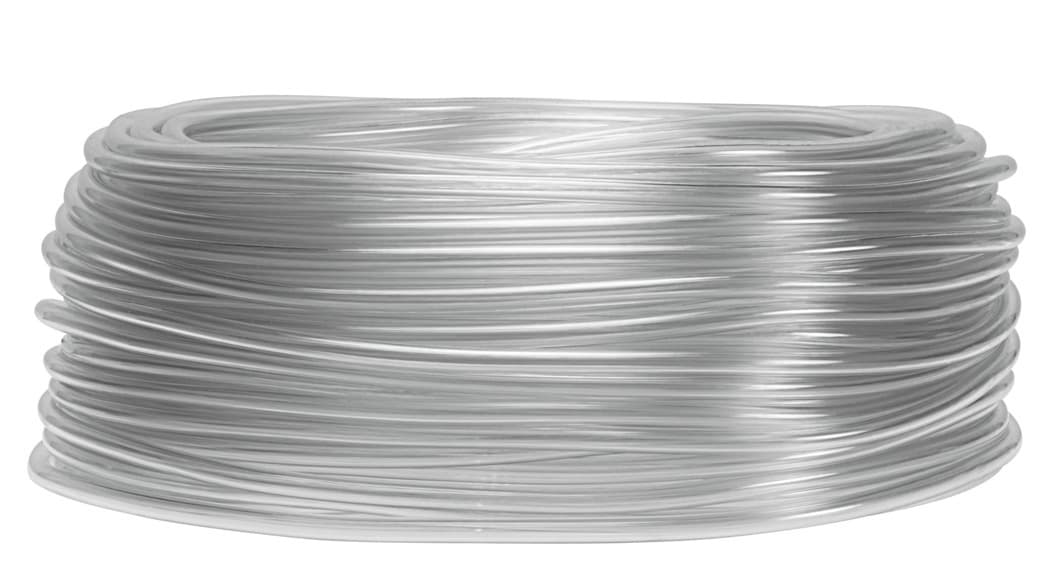

pun-h-5/16-nt-500-ha
Product ID:14908
Updated: 2026/4/3
Key Features
- 1Resist moisture and mildew for lasting performance. 2、Operate reliably from -35°C to 63°C. 3、Ensure smooth flow with a 37.49FT bending radius. 4、Meet ISO 8573-1:2010 and UL94 HB safety standards. 5、Integrate into energy chains and robotics applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| External-? inches | 5/16 | Bending radius relevant for flow rate | 37.49mm |
| Min. bending radius | 20.117mm | Application note | TPE-U Ether based |
| Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
| Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
| Product weight by length | 0.31kg/m | Pneumatic connection | For plug connection outside diameter 5/16" |
| Color | Natural | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 8003127 |
Specifications may be subject to change without notice
