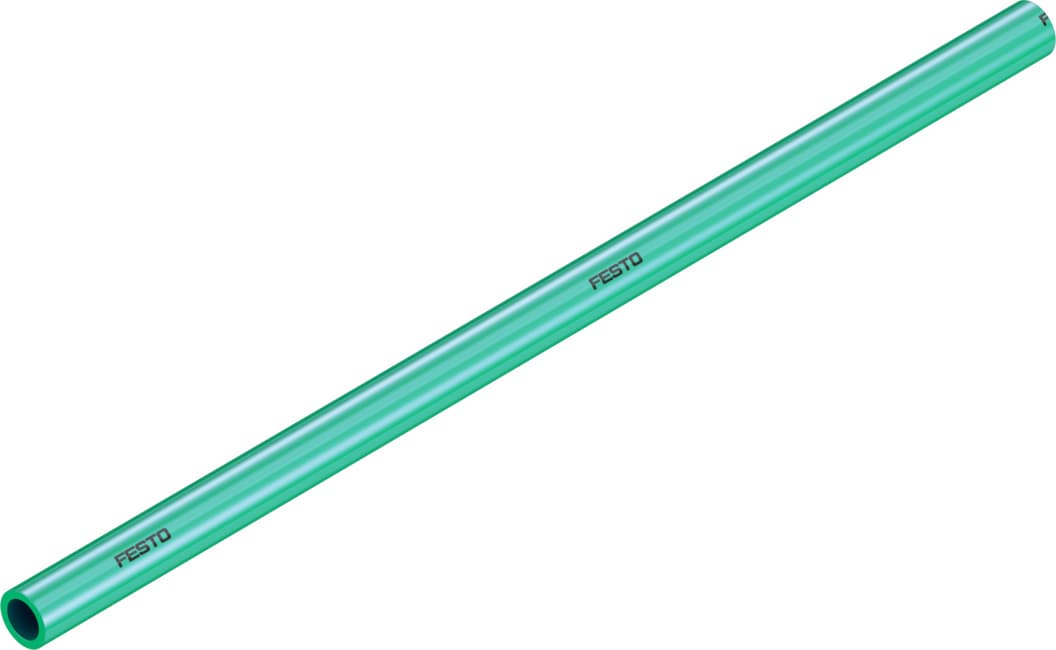

pun-v0-10x2-gn-c
Product ID:13028
Updated: 2026/4/3
Key Features
- 1Utilize flame-retardant TPE-U(PU) material for safety. 2、Apply in energy chains and pneumatic connections. 3、Withstand temperatures up to 90°C unpressurized. 4、Meet TÜV approval and UL94 V-0 fire standards. 5、Optimize flow with a 42mm bending radius.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 10mm | Bending radius relevant for flow rate | 42mm |
| Inside diameter | 6mm | Min. bending radius | 12mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 130.5psi |
| Temperature-dependent operating pressure | -13.775psi 232psi | Information on operating pressure | For applications with weld spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at 40 °C, max. 0.7 MPa at 60 °C Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.064kg/m |
| Pneumatic connection | For plug connection outside diameter 10 mm For barbed fitting, inside diameter 6 mm | Color | Green |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 561708 |
Specifications may be subject to change without notice
