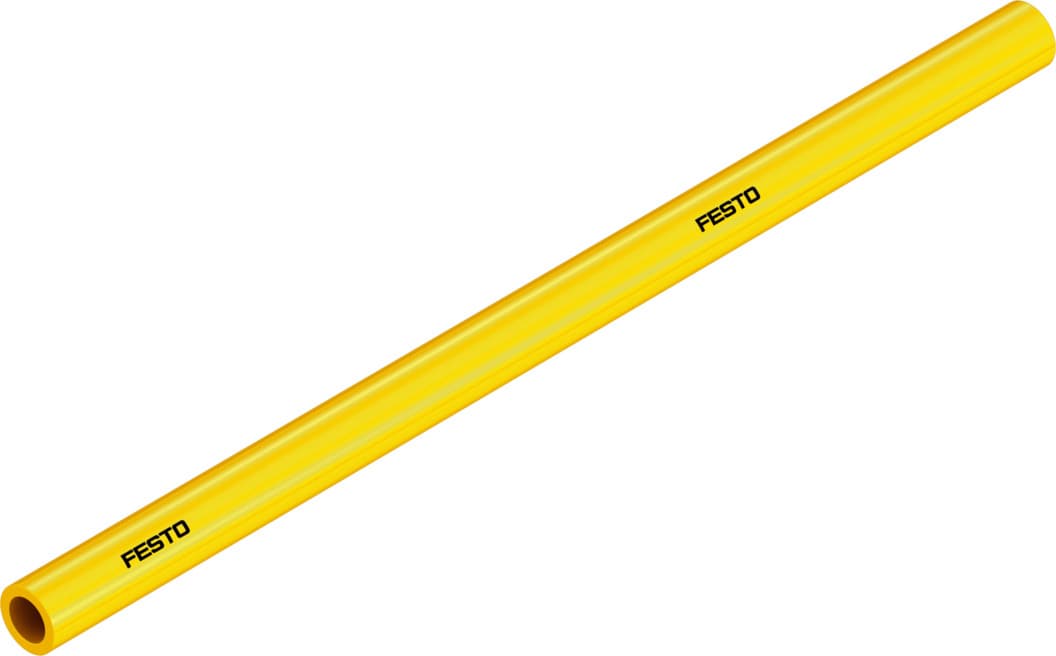

pun-v0-12x2-ge-c
Product ID:13041
Updated: 2026/4/3
Key Features
- 1Withstand over 5 million cycles for high-rate applications. 2、Operate effectively across a wide temperature range. 3、Meet stringent safety and regulatory compliance standards. 4、Pass UL94 V-0 and V-2 fire tests for safety. 5、Ensure eco-friendliness with no hazardous materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 12mm | Bending radius relevant for flow rate | 55mm |
| Inside diameter | 8mm | Min. bending radius | 19mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
| Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.08kg/m |
| Pneumatic connection | For plug connection outside diameter 12 mm | Color | Yellow |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 561721 |
Specifications may be subject to change without notice
