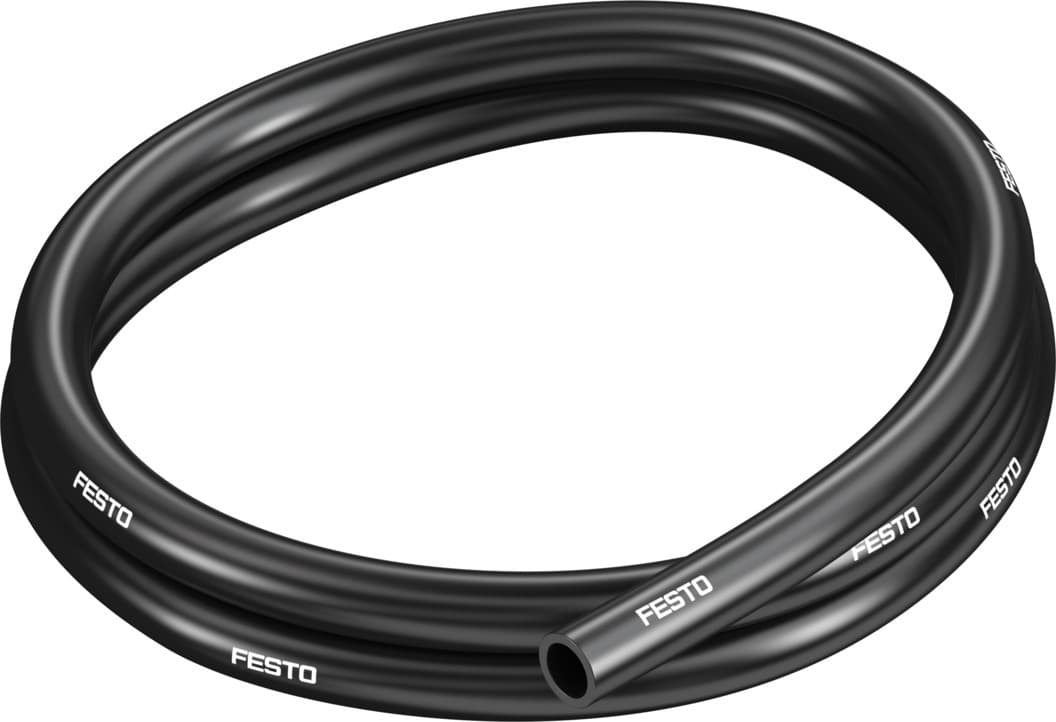

pun-v0-14x2-sw-c
Product ID:13563
Updated: 2026/7/4
Key Features
- 1Meet UL 94 V0 safety certification for reliable operation.
- 2Handle up to 130 psi compressed air with durable polyurethane construction.
- 3Operate effectively across a wide temperature range from -35 to 60°C.
- 4Ensure long-lasting performance in high-cycle applications like energy chains.
- 5Integrate seamlessly with Festo pneumatic systems and accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 14mm | Bending radius relevant for flow rate | 70mm |
| Inside diameter | 9.8mm | Min. bending radius | 45mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 130.5psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.096kg/m |
| Pneumatic connection | For plug connection outside diameter 14 mm | Color | Black |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 570351 |
Specifications may be subject to change without notice
