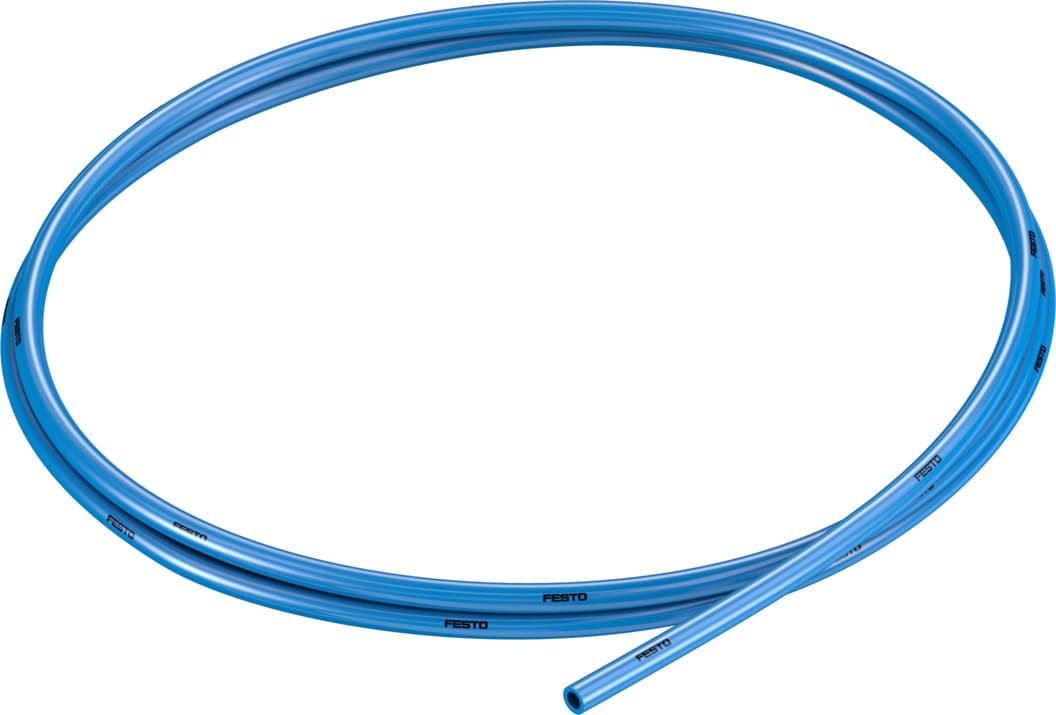

pun-v0-4x1-bl-c
Product ID:13562
Updated: 2026/4/3
Key Features
- 1Meet UL94 V-0 fire test standards for enhanced safety. 2、Handle compressed air and water for versatile industrial use. 3、Ensure durability with a 20mm flow-relevant bending radius. 4、Operate reliably from -35°C to 60°C ambient temperature. 5、Simplify setup with pneumatic push-in connector compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 4mm | Bending radius relevant for flow rate | 20mm |
| Inside diameter | 2mm | Min. bending radius | 10mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
| Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.012kg/m |
| Pneumatic connection | For plug connection outside diameter 4 mm | Color | Blue |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 570350 |
Specifications may be subject to change without notice
