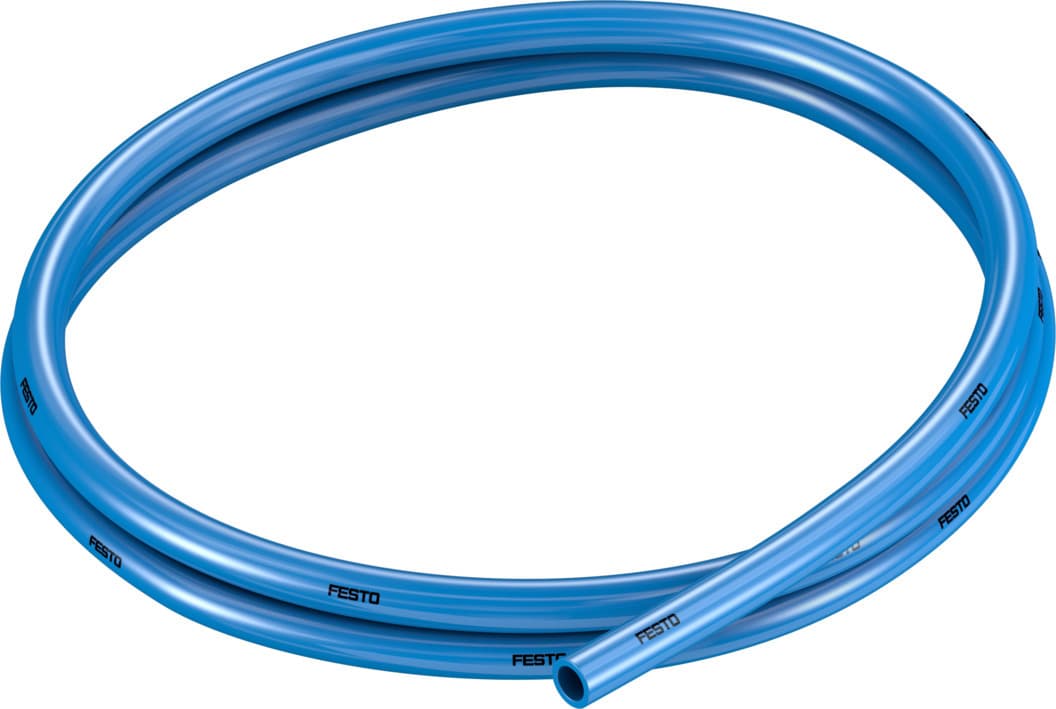

pun-v0-8x2-bl-c
Product ID:13023
Updated: 2026/4/3
Key Features
- 1Resist welding spatter with UL94 V-0 flame retardant blue polyurethane. 2、Support high-pressure applications up to 1.2 MPa operating pressure. 3、Ensure reliability in cable carriers for high cycle rates. 4、Meet stringent safety standards with German TÜV approval. 5、Operate across a wide temperature range from -35°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 8mm | Bending radius relevant for flow rate | 35mm |
| Inside diameter | 4mm | Min. bending radius | 9mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 174psi |
| Temperature-dependent operating pressure | -13.775psi 290psi | Information on operating pressure | For applications with weld spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at 40 °C, max. 0.7 MPa at 60 °C Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.049kg/m |
| Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 4 mm | Color | Blue |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 561703 |
Specifications may be subject to change without notice
