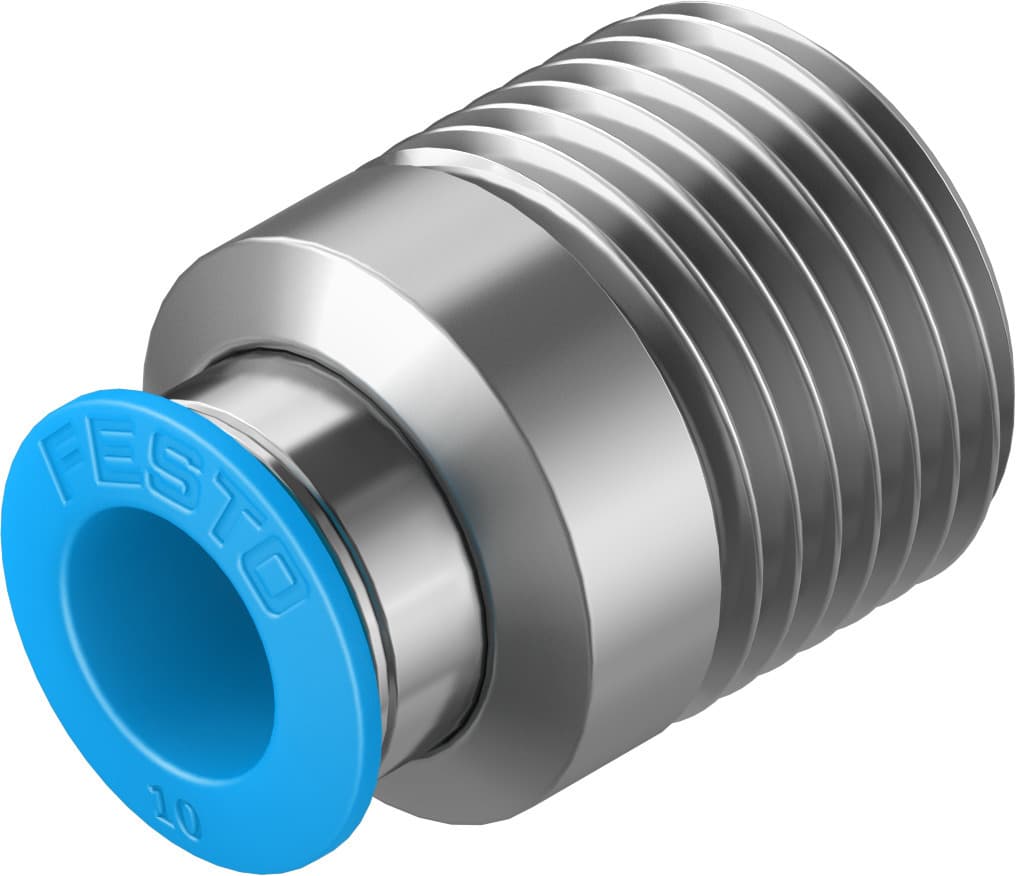

qs-1/2-10-i
Product ID:6751
Updated: 2026/4/3
Key Features
- 1Utilize high-quality brass with nickel plating for durability and corrosion resistance. 2、Enable quick push-in installation to simplify pneumatic tubing connections. 3、Support a maximum operating pressure of 6 bar for versatile industrial use. 4、Ensure compatibility with compressed air and water per ISO 8573-1:2010 standards. 5、Minimize corrosion stress (CRC 1) for reliable performance in harsh environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 45g |
| Type of mounting | Internal hexagon, AF 6 | Pneumatic connection 1 | External thread R1/2 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190648 |
Specifications may be subject to change without notice
