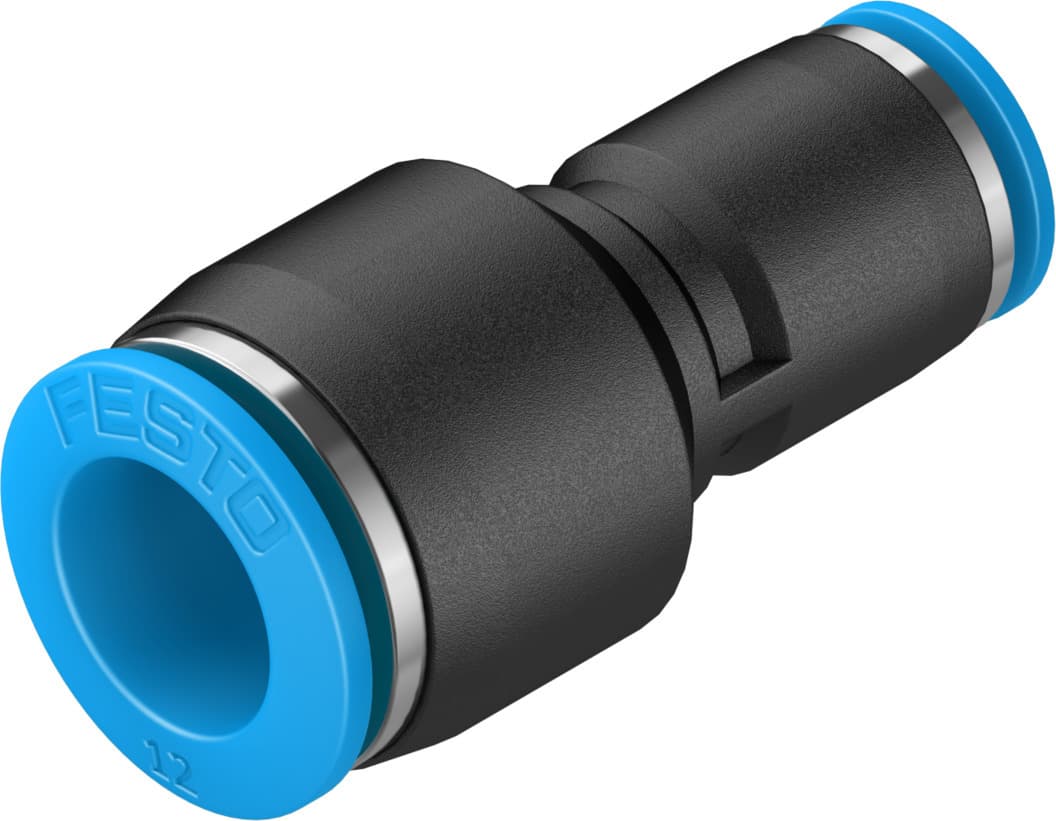

qs-12-8
Product ID:895
Updated: 2026/7/4
Key Features
- 1Use the Festo QS-12-8 for compressed air and water in diverse industrial settings.
- 2Connect standard 5.2 mm tubing easily for seamless system integration.
- 3Employ the push-pull principle for quick, secure, and leak-resistant connections.
- 4Benefit from CRC 1 classification for low corrosion stress in challenging environments.
- 5Operate reliably from -10°C to 80°C under pressures up to 14 bar.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.2mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 16g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130608 |
Specifications may be subject to change without notice
