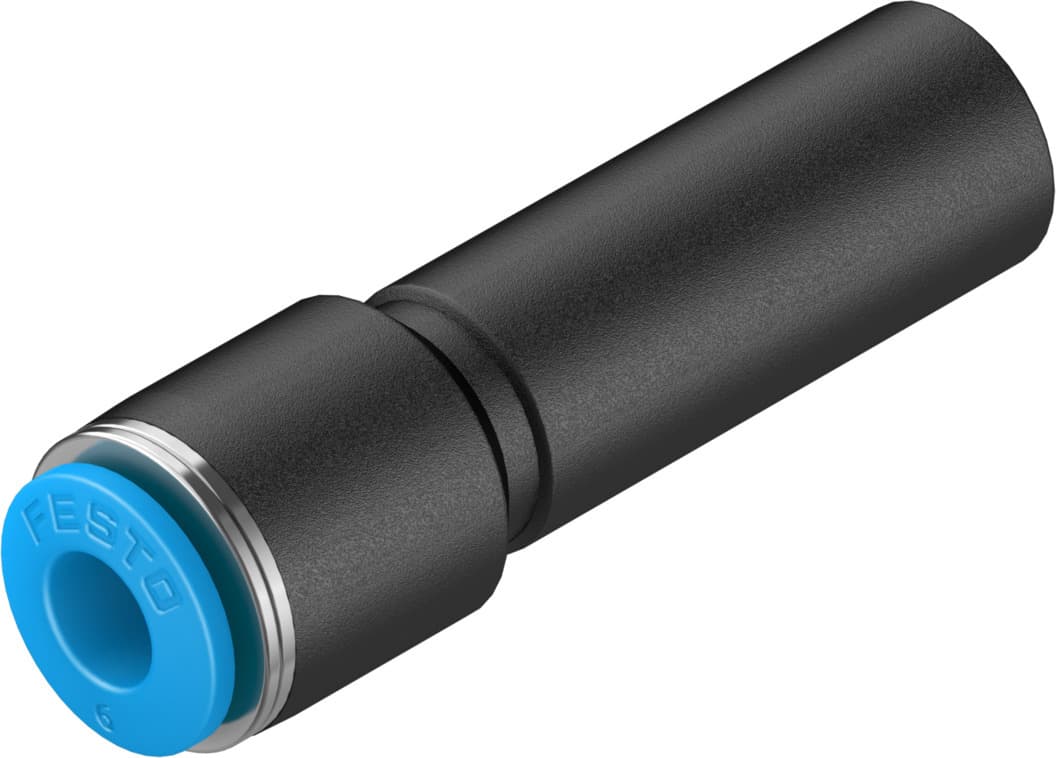

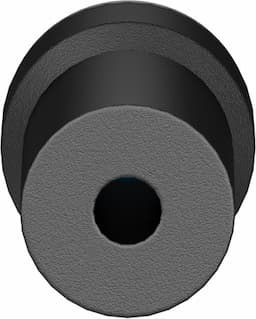

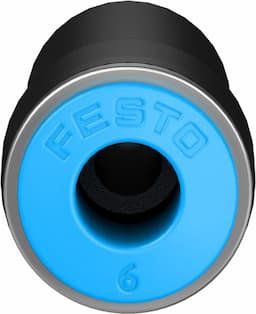

qs-12h-6
Product ID:1275
Updated: 2026/4/4
Key Features
- 1Ensure secure pneumatic connections with the reliable Festo QS-12H-6 push-in connector. 2、Fit compact setups using a Ø12 mm sleeve for 6 mm tubing. 3、Operate reliably across a wide pressure range from -0.95 to 6 bar. 4、Withstand low corrosion stress with a CRC 1 corrosion resistance rating. 5、Meet cleanroom standards with ISO 14644-1 Class 4 certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Product weight | 6g | Pneumatic connection 1 | Push-in sleeve ? 12 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132981 |
Specifications may be subject to change without notice
