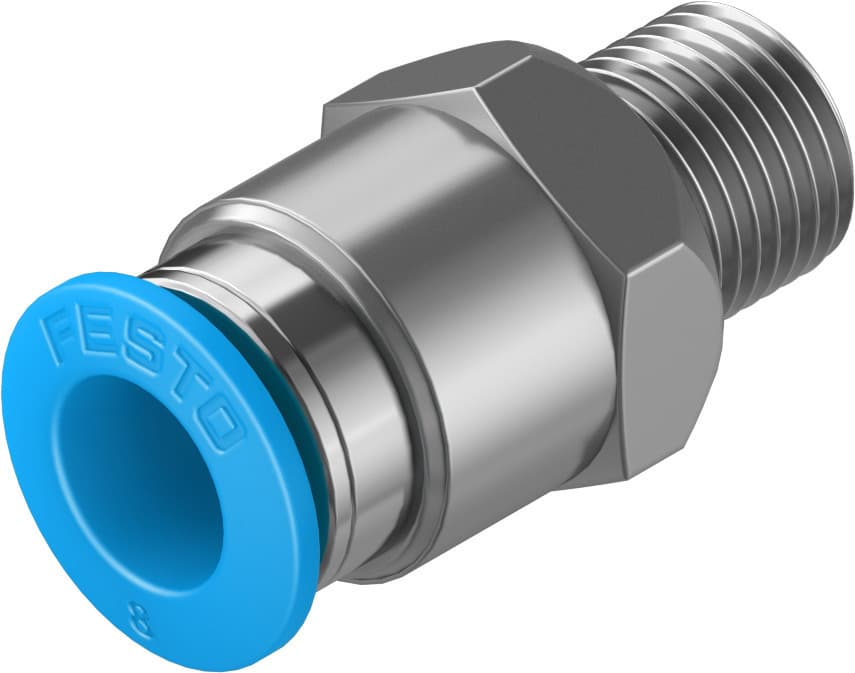

qs-1/8-8-50
Product ID:954
Updated: 2026/7/4
Key Features
- 1Ensure secure pneumatic connections with the reliable Festo QS-1/8-8-50 push-in fitting.
- 2Operate across a wide -10°C to 80°C temperature and 6 bar pressure range.
- 3Construct from corrosion-resistant brass with nickel plating for durability.
- 4Install easily using the push-pull principle to reduce maintenance downtime.
- 5Meet ISO 8573-1 and RoHS standards for quality and safety compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 50 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 14g | Type of mounting | External hexagon, AF 14 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130676 |
Specifications may be subject to change without notice
