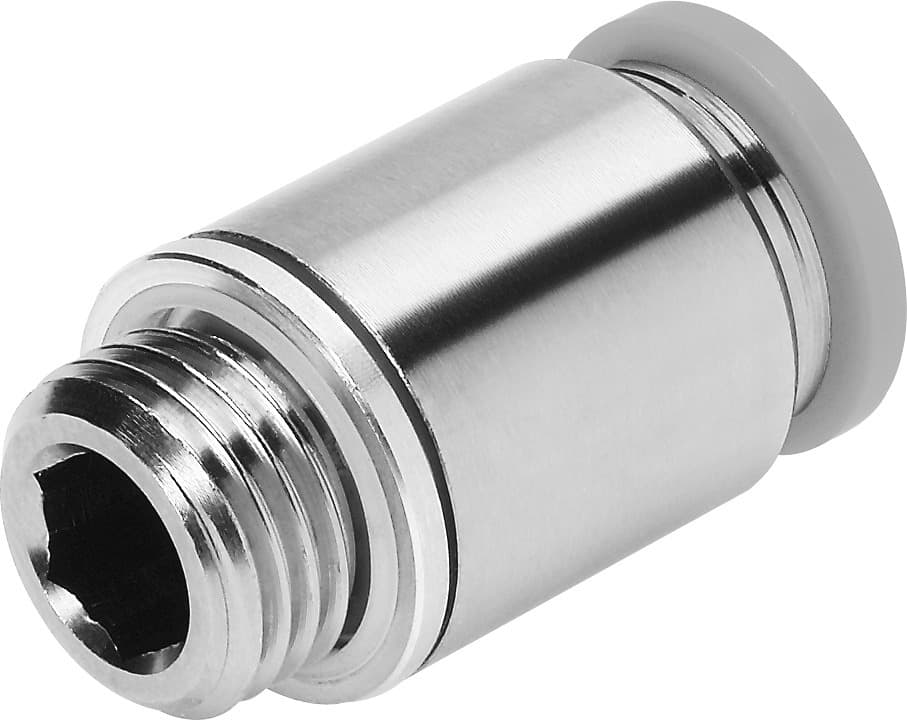

qs-3/8-5/16-i-u-m
Product ID:5693
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic connections with high flow rates. 2、Simplify installation using the push-in design and 6mm HEX. 3、Achieve corrosion resistance with PTFE pre-coated threads. 4、Meet ROHS standards for environmental compliance. 5、Access affordable automation starting at $2.286 per unit.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.299mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Product weight | 18.995g | Type of mounting | Internal hexagon, AF 6 |
| Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" |
| Ambient temperature Fahrenheit | 32°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | Brass Nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 183745 |
Specifications may be subject to change without notice
