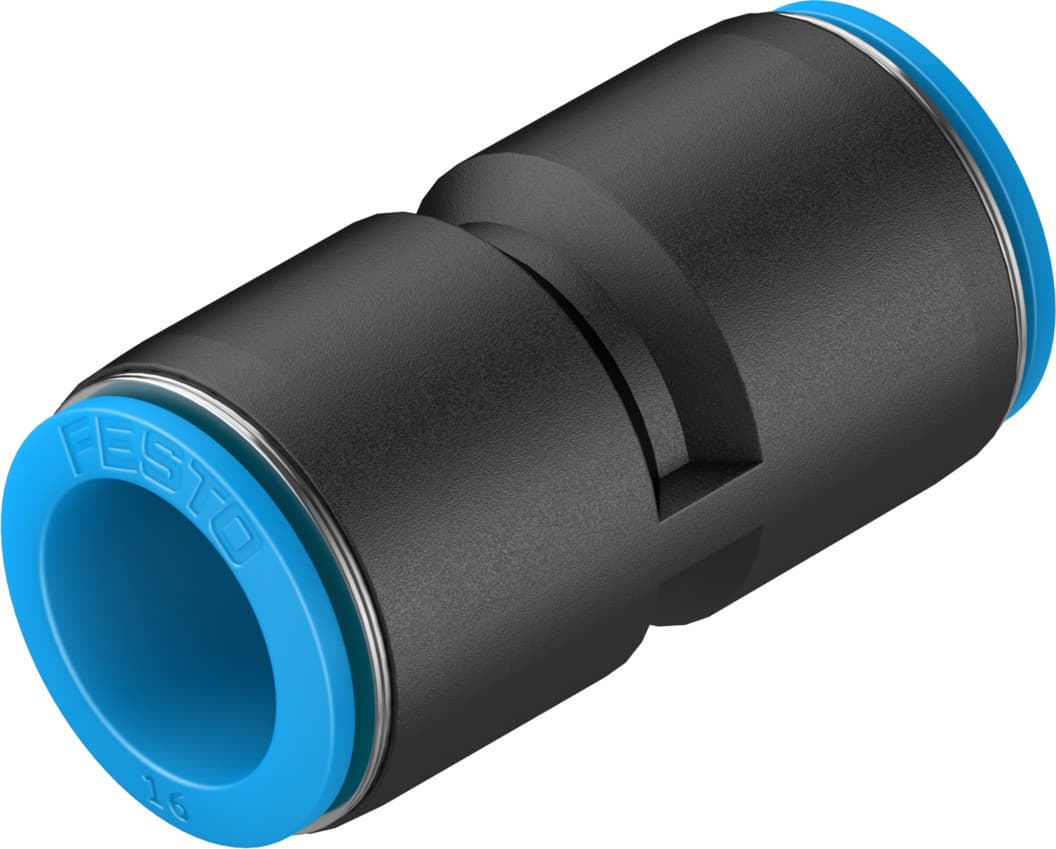

qs-5/8t-u
Product ID:6734
Updated: 2026/4/3
Key Features
- 1Utilize standard 10.7 mm size for universal fit. 2、Mount in optional positions for flexible installation. 3、Handle high operating pressure up to 10 bar. 4、Resist corrosion with CRC classification 1. 5、Ensure durability with PBT housing and NBR seal.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 13mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 26g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 5/8" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/8" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190589 |
Specifications may be subject to change without notice
