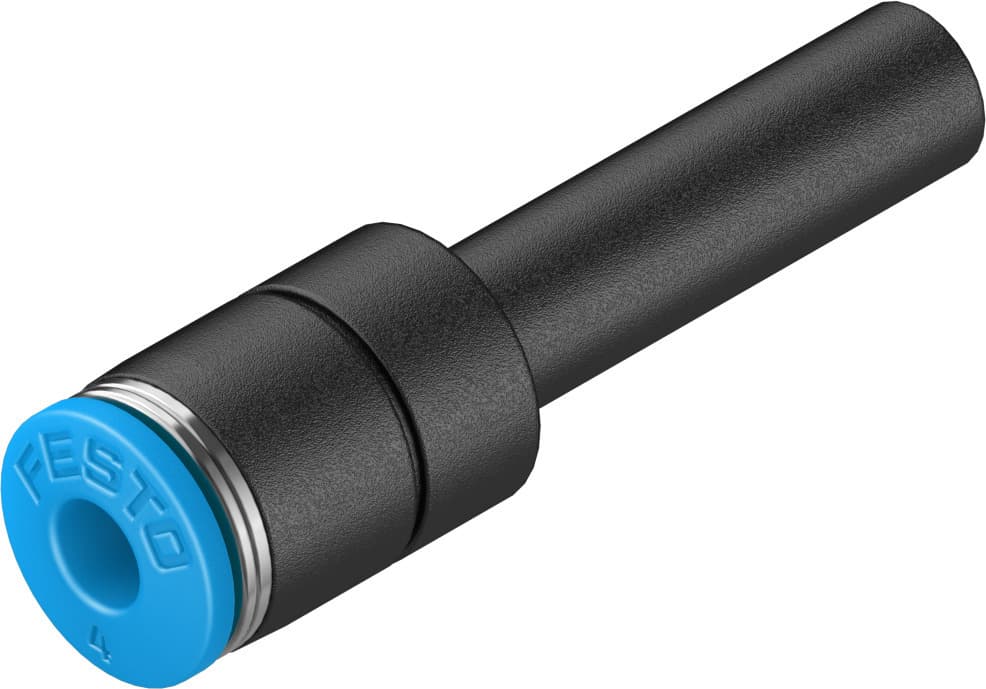

qs-6h-4-100
Product ID:973
Updated: 2026/4/3
Key Features
- 1Ensure precise connections with a 2.5 mm nominal width. 2、Operate reliably from -0.95 to 6 bar across temperatures. 3、Connect easily using the push-pull principle for secure seals. 4、Resist corrosion with class KBK 1 and RoHS-compliant materials. 5、Order conveniently in bulk packs of 100 pieces for stock.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.5mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 2.9g |

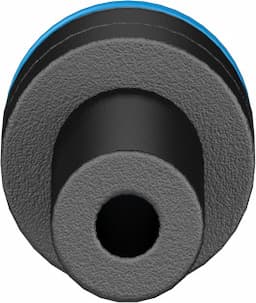

| Pneumatic connection 1 | Push-in sleeve ? 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |

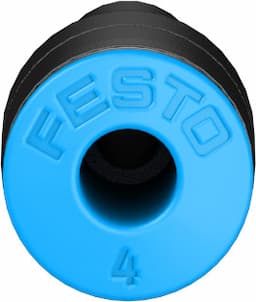

| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130695 |
Specifications may be subject to change without notice
