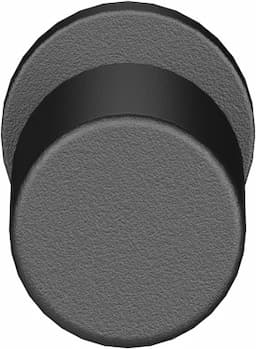

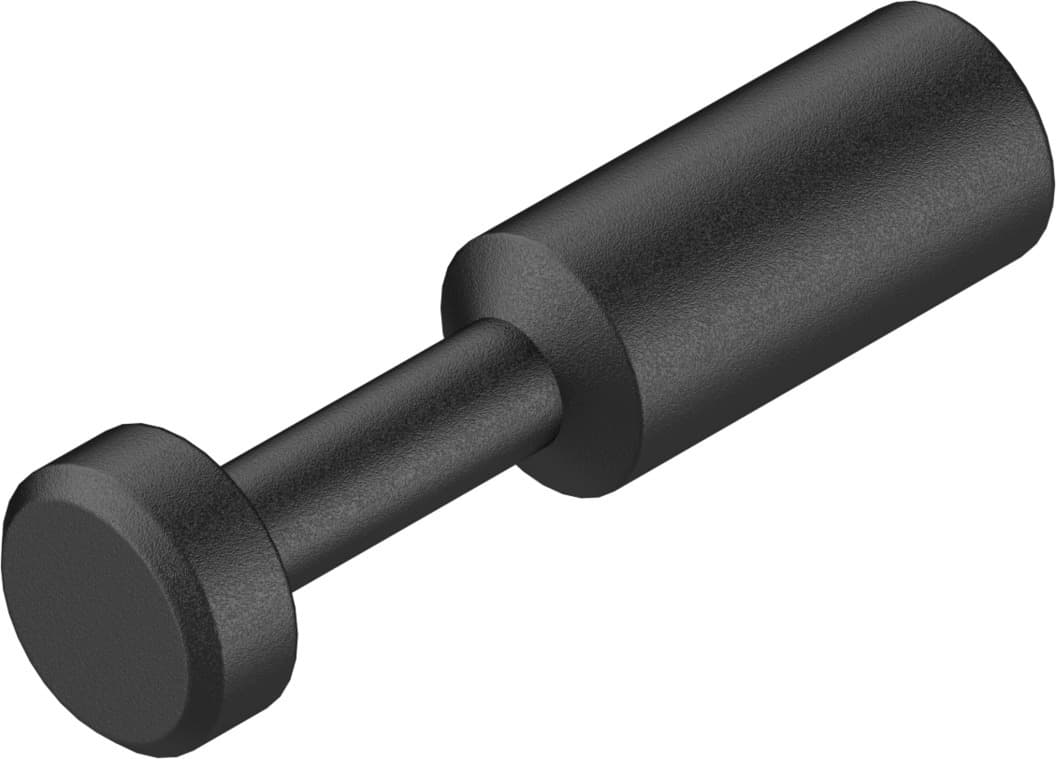

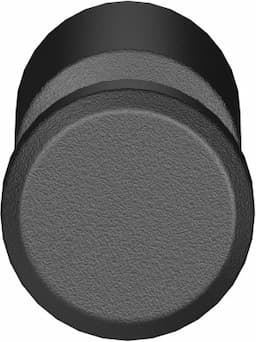

qsc-10h-50
Product ID:980
Updated: 2026/4/3
Key Features
- 1Ensure compatibility with standard 10 mm push-in sleeves. 2、Install flexibly with optional mounting positions. 3、Operate reliably from -0.095 to 1.4 MPa. 4、Meet cleanroom standards with corrosion-resistant PBT. 5、Save space using the compact 2-gram design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Blanking plug | Pack size | 50 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 2g |
| Pneumatic connection 1 | Push-in sleeve ? 10 mm | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 130702 |
Specifications may be subject to change without notice
