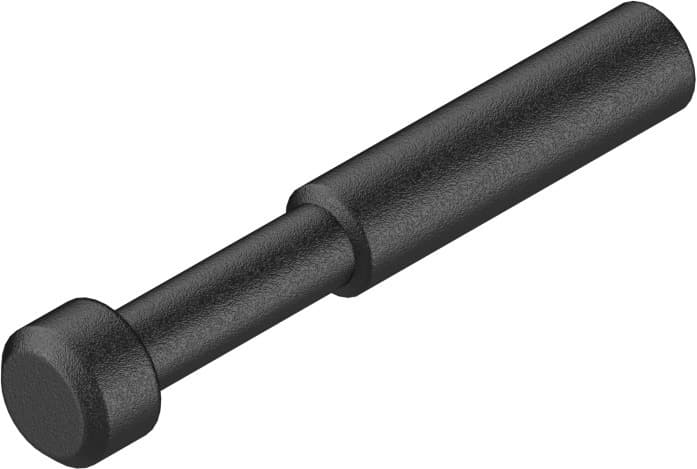

qsc-4h-100
Product ID:977
Updated: 2026/7/4
Key Features
- 1Ensure reliable sealing across a wide operating pressure range from -0.095 to 0.6 MPa.
- 2Use with compressed air (ISO 8573-1:2010) and water for versatile medium compatibility.
- 3Benefit from low corrosion stress (CRC 1) and RoHS compliance for durability.
- 4Operate effectively in a broad temperature range from -10 °C to 80 °C.
- 5Install easily with the lightweight 0.5 g design and 4 mm push-in sleeve.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Blanking plug | Pack size | 100 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 0.5g |
| Pneumatic connection 1 | Push-in sleeve ? 4 mm | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 130699 |
Specifications may be subject to change without notice
