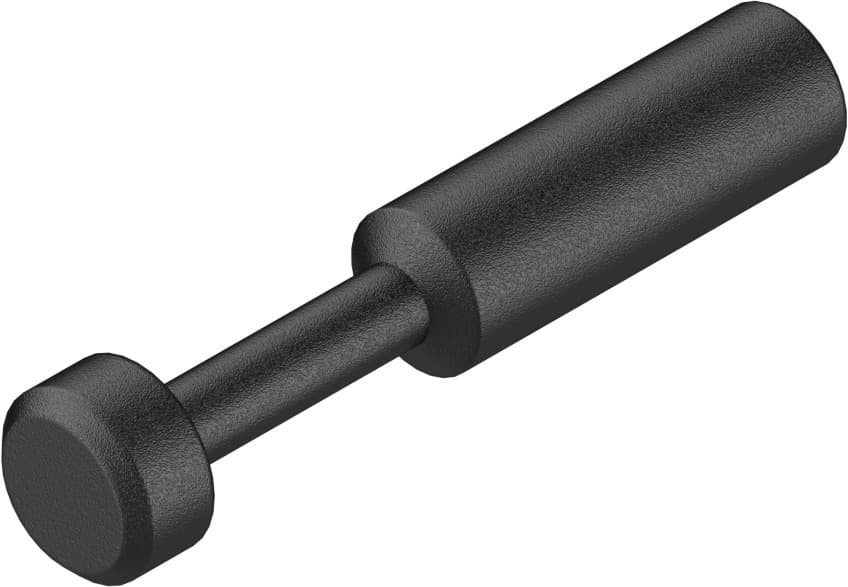

qsc-6h-100
Product ID:978
Updated: 2026/7/4
Key Features
- 1Seal compressed air and vacuum lines reliably.
- 2Operate across a wide -0.95 to 6 bar pressure range.
- 3Resist corrosion with durable PBT material (CRC 1).
- 4Connect easily to 6mm push-in sleeve connectors.
- 5Purchase economically in packs of 100 units.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Blanking plug | Pack size | 100 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 0.5g |
| Pneumatic connection 1 | Push-in sleeve ? 6 mm | Note on materials | RoHS-compliant |
| Housing material | PBT | Manufacturer ID | 130700 |
Specifications may be subject to change without notice
