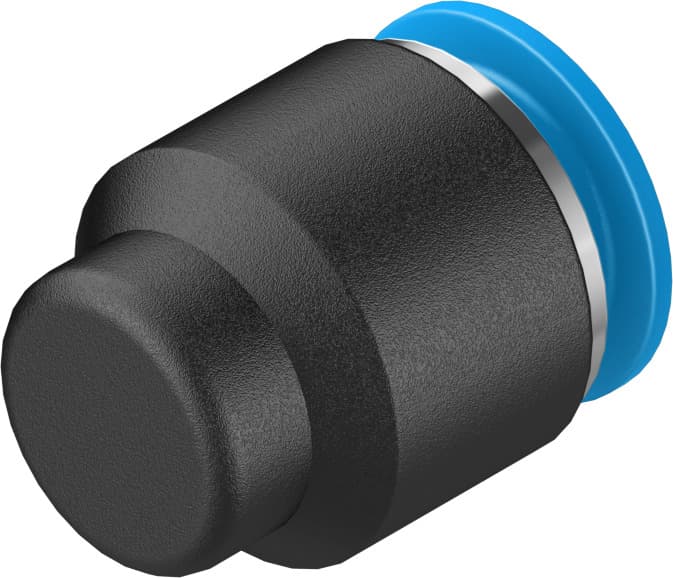

qsc-8-50
Product ID:984
Updated: 2026/7/4
Key Features
- 1Secure 8 mm tubing connections with the push-pull principle.
- 2Operate reliably within a -10°C to 80°C temperature range.
- 3Resist corrosion (CRC 1) for durability in harsh environments.
- 4Ensure compliance using RoHS-certified PBT and POM materials.
- 5Handle up to 6 bar pressure for precise pneumatic control.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Blanking plug | Pack size | 50 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Product weight | 5g | Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130706 |
Specifications may be subject to change without notice
